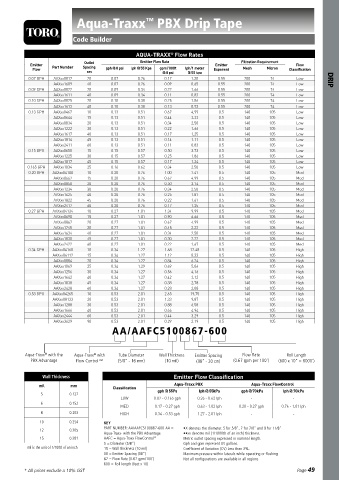

Page 58 - 2020 Pricebook update
P. 58
Aqua-Traxx PBX Drip Tape
™
Code Builder
AQUA-TRAXX Flow Rates
®
Outlet Emitter Flow Rate Filtration Requirement
Emitter Part Number Spacing Emitter Flow
Flow gph @ 8 psi lph @ 55 Kpa gpm/100ft lph/1 meter Exponent Mesh Micron Classification
cm @ 8 psi @ 55 kpa
0.07 GPH AAXxx0817 20 0.07 0.26 0.17 1.30 0.55 200 74 Low DRIP
AAXxx1609 40 0.07 0.26 0.09 0.65 0.55 200 74 Low
0.09 GPH AAXxx0822 20 0.09 0.34 0.22 1.66 0.55 200 74 Low
AAXxx1611 40 0.09 0.34 0.11 0.83 0.55 200 74 Low
0.10 GPH AAXxx0825 20 0.10 0.38 0.25 1.86 0.55 200 74 Low
AAXxx1613 40 0.10 0.38 0.13 0.93 0.55 200 74 Low
0.13 GPH AAXxx0467 10 0.13 0.51 0.67 4.99 0.5 140 105 Low
AAXxx0644 15 0.13 0.51 0.44 3.33 0.5 140 105 Low
AAXxx0834 20 0.13 0.51 0.34 2.50 0.5 140 105 Low
AAXxx1222 30 0.13 0.51 0.22 1.66 0.5 140 105 Low
AAXxx1617 40 0.13 0.51 0.17 1.25 0.5 140 105 Low
AAXxx1814 45 0.13 0.51 0.14 1.11 0.5 140 105 Low
AAXxx2411 60 0.13 0.51 0.11 0.83 0.5 140 105 Low
0.15 GPH AAXxx0650 15 0.15 0.57 0.50 3.73 0.5 140 105 Low
AAXxx1225 30 0.15 0.57 0.25 1.86 0.5 140 105 Low
AAXxx1817 45 0.15 0.57 0.17 1.24 0.5 140 105 Low
0.165 GPH AAXxx1034 25 0.16 0.62 0.34 2.50 0.5 140 105 Low
0.20 GPH AAXxx04100 10 0.20 0.76 1.00 7.47 0.5 140 105 Med
AAXxx0667 15 0.20 0.76 0.67 4.99 0.5 140 105 Med
AAXxx0850 20 0.20 0.76 0.50 3.74 0.5 140 105 Med
AAXxx1234 30 0.20 0.76 0.34 2.50 0.5 140 105 Med
AAXxx1625 40 0.20 0.76 0.25 1.87 0.5 140 105 Med
AAXxx1822 45 0.20 0.76 0.22 1.67 0.5 140 105 Med
AAXxx2417 60 0.20 0.76 0.17 1.25 0.5 140 105 Med
0.27 GPH AAXxx04134 10 0.27 1.01 1.34 9.99 0.5 140 105 Med
AAXxx0690 15 0.27 1.01 0.90 6.66 0.5 140 105 Med
AAXxx0867 20 0.27 1.01 0.67 4.99 0.5 140 105 Med
AAXxx1245 30 0.27 1.01 0.45 3.33 0.5 140 105 Med
AAXxx1634 40 0.27 1.01 0.34 2.50 0.5 140 105 Med
AAXxx1830 45 0.27 1.01 0.30 2.22 0.5 140 105 Med
AAXxx2422 60 0.27 1.01 0.22 1.67 0.5 140 105 Med
0.34 GPH AAXxx04168 10 0.34 1.27 1.68 12.48 0.5 140 105 High
AAXxx06112 15 0.34 1.27 1.12 8.33 0.5 140 105 High
AAXxx0884 20 0.34 1.27 0.84 6.24 0.5 140 105 High
AAXxx1069 25 0.34 1.29 0.69 5.06 0.5 140 105 High
AAXxx1256 30 0.34 1.27 0.56 4.16 0.5 140 105 High
AAXxx1642 40 0.34 1.27 0.42 3.12 0.5 140 105 High
AAXxx1838 45 0.34 1.27 0.38 2.78 0.5 140 105 High
AAXxx2428 60 0.34 1.27 0.28 2.08 0.5 140 105 High
0.53 GPH AAXxx04265 10 0.53 2.01 2.65 19.75 0.5 140 105 High
AAXxx08133 20 0.53 2.01 1.33 9.87 0.5 140 105 High
AAXxx1288 30 0.53 2.01 0.88 6.58 0.5 140 105 High
AAXxx1666 40 0.53 2.01 0.66 4.94 0.5 140 105 High
AAXxx2444 60 0.53 2.01 0.44 3.29 0.5 140 105 High
AAXxx3629 90 0.53 2.01 0.29 2.19 0.5 140 105 High
AA/AAFC5100867-600
Aqua-Traxx with the Aqua-Traxx with Tube Diameter Wall Thickness Emitter Spacing Flow Rate Roll Length
®
®
PBX Advantage Flow Control™ (5/8” - 16 mm) (10 mil) (08” - 20 cm) (0.67 gpm per 100’) (600 x 10” = 6000’)
Wall Thickness Emitter Flow Classification
mil mm Aqua-Traxx PBX Aqua-Traxx FlowControl
Classification
5 0.127 gph @ 55Pa Iph @ 55kPa gph @ 70kPa Iph @ 70kPa
LOW 0.07 - 0.165 gph 0.26 - 0.62 Iph - -
6 0.152
MED 0.17 - 0.27 gph 0.63 - 1.02 Iph 0.20 - 0.27 gph 0.76 - 1.01 Iph
8 0.203 HIGH 0.34 - 0.53 gph 1.27 - 2.01 Iph - -
10 0.254 KEY
PART NUMBER: AA/AAFC5100867-600 AA = •X denotes the diameter. 5 for 5/8”, 7 for 7/8” and 9 for 11/8”
12 0.305
Aqua-Traxx· with the PBX Advantage ••xx denotes mil (1/1000th of an inch) thickness.
15 0.381 AAFC = Aqua-Traxx FlowControl ™ Metric outlet spacing expressed in nominal length.
5 = Diameter (5/8”) Gph and gpm represent US gallons.
mil is the unit of 1/1000 of an inch 10 = Wall thickness (10 mil) Coefficient of Variation (CV) Less than 3%.
08 = Emitter Spacing (08”) Maximum pressure within laterals while operating or flushing
67 = Flow Rate (0.67 gpm/100’) Not all configurations are available in all regions
600 = Roll length (feet x 10)
* All prices exclude a 10% GST Page 49
