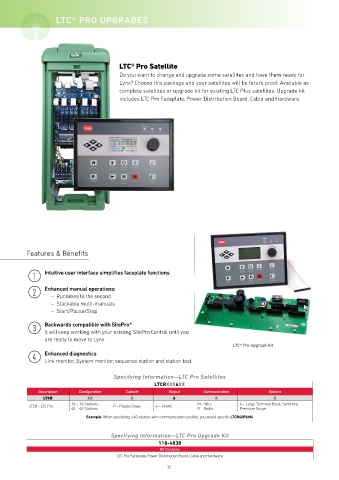

LTC® PRO UPGRADES

LTC® Pro Satellite
Do you want to change and upgrade some satellites and have them ready for
Lynx? Choose this package and your satellites will be future proof. Available as
complete satellites or upgrade kit for existing LTC Plus satellites. Upgrade kit
includes LTC Pro Faceplate, Power Distribution Board, Cable and Hardware.

Features & Benefits

1 Intuitive user interface simplifies faceplate functions

2 Enhanced manual operations:
– Runtimes to the second
– Stackable multi-manuals
– Start/Pause/Stop

3 Backwards compatible with SitePro® :
It will keep working with your existing SitePro Central until you
are ready to move to Lynx.
LTC® Pro Upgrade Kit
4 Enhanced diagnostics
Link monitor, System monitor, sequence station and station test.

Specifying Information—LTC Pro Satellites
LTCRXXX6XX
Description Configuration Cabinet Output Communication Options
LTCR XX X 6 X X
16 – 16 Stations M – Wire 4 – Large Terminal Block, Switches,
LTCR - LTC Pro P – Plastic Green 6 – 24VAC
40 – 40 Stations R – Radio Premium Surge
Example: When specifying a 40-station, wire communication satellite, you would specify: LTCR40P6M4

Specifying Information—LTC Pro Upgrade Kit
118-4838
Kit Contains
LTC Pro Faceplate, Power Distribution Board, Cable and Hardware
