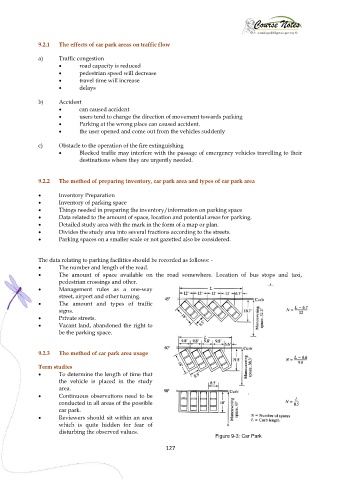

Page 134 - Lecture Notes DCC3113

9.2.1 The effects of car park areas on traffic flow

a) Traffic congestion
 road capacity is reduced
 pedestrian speed will decrease
 travel time will increase
 delays

b) Accident
 can caused accident
 users tend to change the direction of movement towards parking
 Parking at the wrong place can caused accident.
 the user opened and come out from the vehicles suddenly

c) Obstacle to the operation of the fire extinguishing
 Blocked traffic may interfere with the passage of emergency vehicles travelling to their
destinations where they are urgently needed.

9.2.2 The method of preparing inventory, car park area and types of car park area

 Inventory Preparation
 Inventory of parking space
 Things needed in preparing the inventory/information on parking space
 Data related to the amount of space, location and potential areas for parking.
 Detailed study area with the mark in the form of a map or plan.
 Divides the study area into several fractions according to the streets.
 Parking spaces on a smaller scale or not gazetted also be considered.

The data relating to parking facilities should be recorded as follows: -
 The number and length of the road.
 The amount of space available on the road somewhere. Location of bus stops and taxi,
pedestrian crossings and other.
 Management rules as a one-way
street, airport and other turning.
 The amount and types of traffic
signs.
 Private streets.
 Vacant land, abandoned the right to
be the parking space.

9.2.3 The method of car park area usage

Term studies
 To determine the length of time that
the vehicle is placed in the study
area.
 Continuous observations need to be
conducted in all areas of the possible
car park.
 Reviewers should sit within an area
which is quite hidden for fear of
disturbing the observed values.
Figure 9-3: Car Park

127
