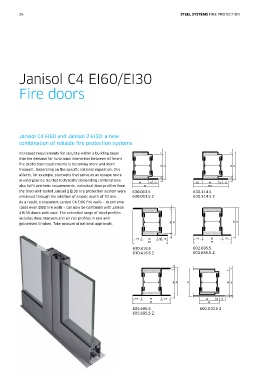

26 STEEL SYSTEMS FIRE PROTECTION

Janisol C4 EI60/EI30

Fire doors

Janisol C4 EI60 and Janisol 2 EI30: a new
combination of reliable re protection systems

Increased requirements for security within a building mean 7 7
that the demand for functional interaction between different
re protection requirements is becoming more and more
56 70 56 70
frequent. Depending on the speci c national regulation, this
affects, for example, stairwells that serve as an escape route
4 4
in emergencies. So that technically demanding combinations
40 10 15 3 22.5 40 10 15 3
also ful l aesthetic requirements, individual door pro les from 65 87.5
the tried-and-tested Janisol 2 EI30 re protection system were 630.013.5 630.114.5
enhanced through the addition of a basic depth of 70 mm. 630.013.5 Z 630.114.5 Z
As a result, transparent Janisol C4 EI60 re walls – in extreme
cases even EI90 re walls – can now be combined with Janisol
7
2 EI30 doors with ease. The extended range of steel pro les
includes door, transom and sill rail pro les in raw and
galvanised nishes. Take account of national approvals. 56 70 67 70

4
22.5 40 10 15 3 22.5 50 22.5 3
87.5 95
630.416.5 602.685.5
630.416.5 Z 602.685.5 Z

3
3
4
64 70 70 56 64

4
3
22.5 50 22.5 3 40 10 15
95 50
605.685.5 600.010.5 Z
605.685.5 Z
