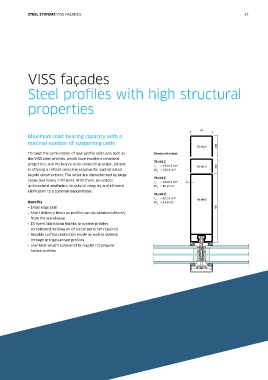

STEEL SYSTEMS VISS FAÇADES 21

VISS façades

Steel pro les with high structural

properties

60 60
Maximum load-bearing capacity with a
minimal number of supporting units
3
76.142 Z 280
Through the combination of new pro le additions such as Structural values
60
the VISS steel pro les, which have excellent structural
76.142 Z
properties, and the heavy-duty connecting spigot, Jansen
3 I X = 1964.8 cm 4 76.141 Z 220
60 is offering a re ned complete solution for sophisticated W X = 126.4 cm 3
façade constructions. The latter are characterised by large
76.141 Z
spans and heavy in ll units. With them, we reduce
3 I X = 1046.2 cm 4 3
architectural aesthetics, structural integrity and ef cient 280 W X = 85.2 cm 3
76.142 Z
fabrication to a common denominator.
76.140 Z
76.141 Z 220 I X = 621.5 cm 4 76.140 Z
Bene ts W X = 61.8 cm 3
76.140 Z 180 • Small edge radii 180
• Short delivery times as pro les can be obtained directly
from the warehouse
• Ef cient fabrication thanks to system pro les:
complicated welding on of screw ports not required
• Reliable surface protection inside as well as outside
through pre-galvanised pro les
• Low total weight compared to regular rectangular
hollow pro les
