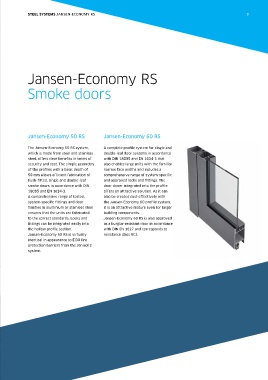

Page 9 - Jasen - Steel Windoor

STEEL SYSTEMS JANSENECONOMY RS 9

Jansen-Economy RS

Smoke doors

Jansen-Economy 50 RS Jansen-Economy 60 RS

The Jansen-Economy 50 RS system, A complete pro le system for single and
which is made from steel and stainless double-leaf door systems in accordance
steel, offers clear bene ts in terms of with DIN 18095 and EN 1634-3 that
security and cost. The simple geometry also enables large units with the familiar
of the pro les with a basic depth of narrow face widths and includes a
50 mm allows ef cient fabrication of comprehensive range of system-speci c
ush- tted, single and double-leaf and approved locks and ttings. The
smoke doors in accordance with DIN door closer integrated into the pro le
18095 and EN 1634-3. offers an attractive solution. As it can
A comprehensive range of tested, also be created cost-effectively with
system-speci c ttings and door the Jansen-Economy 60 pro le system,
handles in aluminium or stainless steel it is an attractive feature even for larger
ensures that the units are fabricated building components.
to the correct standards. Locks and Jansen-Economy 60 RS is also approved
ttings can be integrated easily into as a burglar-resistant door in accordance
the hollow pro le section. with DIN EN 1627 and corresponds to
Jansen-Economy 50 RS is virtually resistance class RC3.
identical in appearance to EI30 re
protection barriers from the Janisol 2
system.
