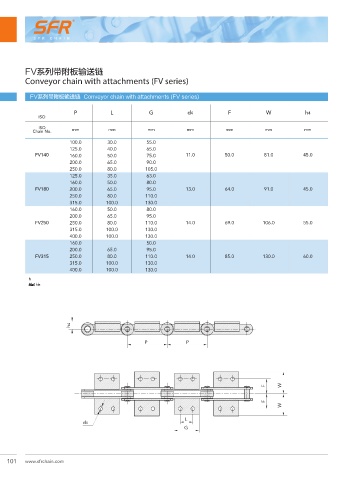

Page 118 - SFR Chain Catalogue v.3.1

FV系列带附板输送链
Conveyor chain with attachments (FV series)

FV系列带附板输送链 Conveyor chain with attachments (FV series)

৽ݼ P L G d4 F W h4
ISO
ISO
Chain No. mm mm mm mm mm mm mm
100.0 30.0 55.0
125.0 40.0 65.0
FV140 160.0 50.0 75.0 11.0 50.0 81.0 45.0
200.0 65.0 90.0
250.0 80.0 105.0
125.0 35.0 63.0
160.0 50.0 80.0
FV180 200.0 65.0 95.0 13.0 64.0 91.0 45.0
250.0 80.0 110.0
315.0 100.0 130.0
160.0 50.0 80.0
200.0 65.0 95.0
FV250 250.0 80.0 110.0 14.0 69.0 106.0 55.0
315.0 100.0 130.0
400.0 100.0 130.0
160.0 ¶ 50.0
200.0 65.0 95.0
FV315 250.0 80.0 110.0 14.0 85.0 130.0 60.0
315.0 100.0 130.0
400.0 100.0 130.0
µ¶ڸϰջ၂۱।
µ¶͎΁΁ͮͰ͵ͺͲͻ΁΀Ḥ΄Ͷ΁͵Ḥ̾Ḥ͵ͼ͹Ͳ

h4

P P

F W

F
W

L
d4
G
