M系列带附板输送链

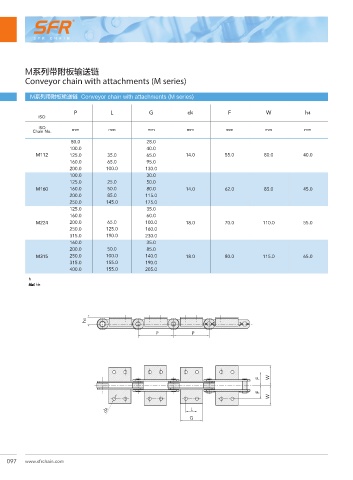

Conveyor chain with attachments (M series)

M系列带附板输送链 Conveyor chain with attachments (M series)

৽ݼ P Ḥ L G d4 F W h4
ISO
ISO
Chain No. mm mm mm mm mm mm mm
80.0 ¶ 28.0
100.0 ¶ 40.0
M112 125.0 35.0 65.0 14.0 55.0 80.0 40.0
160.0 65.0 95.0
200.0 100.0 130.0
100.0 ¶ 30.0
125.0 25.0 50.0
M160 160.0 50.0 80.0 14.0 62.0 85.0 45.0
200.0 85.0 115.0
250.0 145.0 175.0
125.0 ¶ 35.0
160.0 ¶ 60.0
M224 200.0 65.0 100.0 18.0 70.0 110.0 55.0
250.0 125.0 160.0
315.0 190.0 230.0
160.0 ¶ 35.0
200.0 50.0 85.0
M315 250.0 100.0 140.0 18.0 80.0 115.0 65.0
315.0 155.0 190.0
400.0 155.0 205.0
µ¶ڸϰջ၂۱।
µ¶͎΁΁ͮͰ͵ͺͲͻ΁΀Ḥ΄Ͷ΁͵Ḥ̾Ḥ͵ͼ͹Ͳ

h4

P P

F W

F
W

d4 L
G
