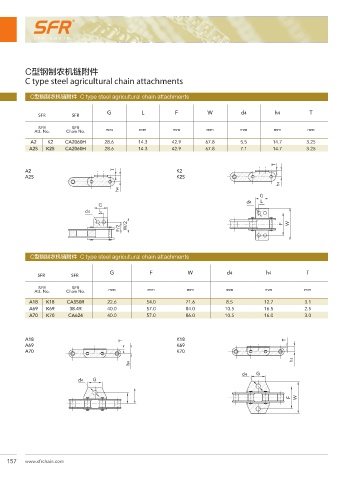

C型钢制农机链附件
C type steel agricultural chain attachments

C型钢制农机链附件 C type steel agricultural chain attachments

ڸࡱݼ ৽ݼ G L F W d4 h4 T
SFR SFR
SFR SFR
Att. No. Chain No. mm mm mm mm mm mm mm
A2 K2 CA2060H 28.6 14.3 42.9 67.8 5.5 14.7 3.25
A2S K2S CA2060H 28.6 14.3 42.9 67.8 7.1 14.7 3.25

T
͎̿ T ̿͘
͎̿͠ ̿͘͠
h4
h4
G
G d4 L
d4 L

F/2 W/2 F W

C型钢制农机链附件 C type steel agricultural chain attachments

ڸࡱݼ ৽ݼ G F W d4 h4 T
SFR SFR

SFR SFR
Att. No. Chain No. mm mm mm mm mm mm
A18 K18 CA550R 22.6 54.0 71.6 8.5 12.7 3.1
A69 K69 38.4R 40.0 57.0 84.0 10.5 16.5 2.5
A70 K70 CA624 40.0 57.0 86.0 10.5 16.0 3.0

͎̾ͅ T ̾͘ͅ T
͎̓͆ ̓͆͘
͎̈́̽ ̈́̽͘
h4
h4
d4 G
d4 G

F W

157 www.sfrchain.com
