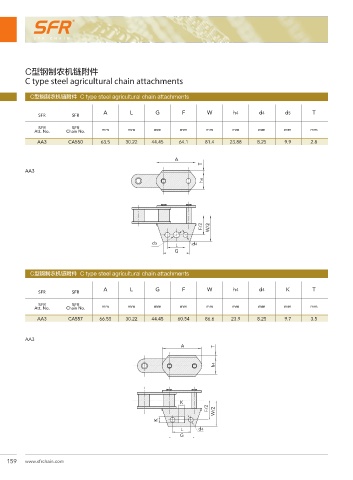

C型钢制农机链附件
C type steel agricultural chain attachments

C型钢制农机链附件 C type steel agricultural chain attachments

ڸࡱݼ ৽ݼ A L G F W h4 d4 d5 T
SFR SFR
SFR SFR
Att. No. Chain No. mm mm mm mm mm mm mm mm mm
AA3 CA550 63.5 30.22 44.45 64.1 81.4 23.88 8.25 9.9 2.8

A
T
͎͎̀

h4

F/2 W/2

d5 L d4
G

C型钢制农机链附件 C type steel agricultural chain attachments

ڸࡱݼ ৽ݼ A L G F W h4 d4 K T
SFR SFR

SFR SFR
Att. No. Chain No. mm mm mm mm mm mm mm mm mm
AA3 CA557 66.55 30.22 44.45 60.54 86.6 23.9 8.25 9.7 3.5

͎͎̀
A T

h4

K
F/2 W/2

K
L d4
G
