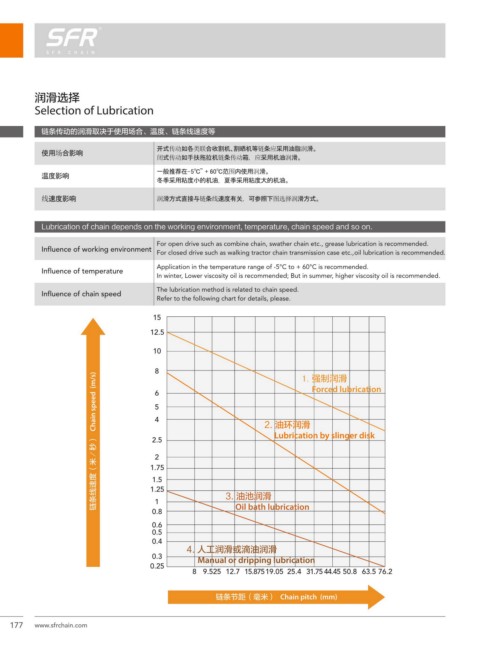

润滑选择
Selection of Lubrication

链条传动的润滑取决于使用场合、温度、链条线速度等
षൔԮ׮ೂ۲ো৳ކ൬۩ࠏa۩ೲࠏ֩৽่ႋҐႨႲᆫ೎߁b
൐Ⴈӆކ႕ཙ
оൔԮ׮ೂ൭ړ຀ঘࠏ৽่Ԯ׮དđႋҐႨࠏႲ೎߁b
၂Ϯ๷ࡩᄝ̺͂¥΋Ḥ̸Ḥ̓̽¥ٓຶଽ൐Ⴈ೎߁b
໑؇႕ཙ
׫࠱ҐႨᅔ؇ཬ֥ࠏႲđ༱࠱ҐႨᅔ؇ն֥ࠏႲb
ཌ෎؇႕ཙ ೎߁ٚൔᆰࢤა৽่ཌ෎؇Ⴕܱđॖҕᅶ༯๭࿊ᄴ೎߁ٚൔb

Lubrication of chain depends on the working environment, temperature, chain speed and so on.

For open drive such as combine chain, swather chain etc., grease lubrication is recommended.
Influence of working environment For closed drive such as walking tractor chain transmission case etc., oil lubrication is recommended.

Application in the temperature range of -5°C to + 60°C is recommended.
Influence of temperature
In winter, Lower viscosity oil is recommended; But in summer, higher viscosity oil is recommended.
The lubrication method is related to chain speed.
Influence of chain speed
Refer to the following chart for details, please.

15
12.5

10

8 ̻̾Ḥ强制润滑
Chain speed (m/s) 6 2. 油环润滑
ḤḤḤḤForced lubricationḤḤ
5
4

ḤḤḤḤLubrication by slinger disk
2.5
链条线速度（米／秒） 1.75 3. 油池润滑
2

1.5
1.25
1
0.8
0.6 ḤḤḤḤOil bath lubrication
0.5
0.4
4. 人工润滑或滴油润滑
0.3 Manual or dripping lubrication
0.25
8 9.525 12.7 15.87519.05 25.4 31.75 44.45 50.8 63.5 76.2

链条节距（毫米） Chain pitch (mm)
