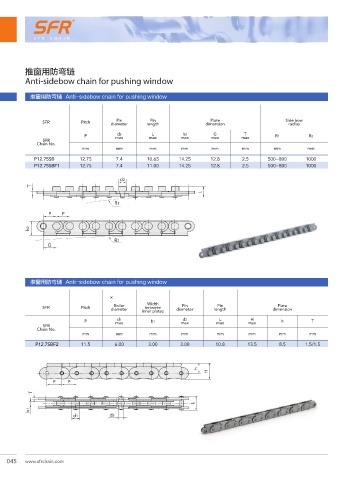

Page 62 - SFR Chain Catalogue v.3.1

推窗用防弯链
Anti-sidebow chain for pushing window

推窗用防弯链 Anti-sidebow chain for pushing window

৽ݼ Ḥ ࢫए ཧᇠᆰࣥ ཧᇠӉ؇ ৽ϰԄժ Ḥ ҧຕ϶ࣥ
Pin
Plate
Pin
SFR Pitch diameter length dimension Side bow
radius
T
L
G
d2
h2
P max max max max max R1 R2
SFR
Chain No.
mm mm mm mm mm mm mm mm
P12.75SB 12.75 7.4 10.65 14.25 12.8 2.5 500~800 1000
P12.75SBF1 12.75 7.4 11.00 14.25 12.8 2.5 500~800 1000
d2
T
L
R1
P P

h2
R2
G

推窗用防弯链 Anti-sidebow chain for pushing window

Ḥ
৽ݼ ࢫए ݏሰᆰࣥ ଽࢫଽॺ ཧᇠᆰࣥ ཧᇠӉ؇ ৽ϰԄժ
Width
Pin
Plate
Pin
Roller
between
SFR Pitch diameter inner plates diameter length dimension
H
L
d2
d1
P max b1 max max max h T
SFR
Chain No.
mm mm mm mm mm mm mm mm
P12.7SBF2 11.5 6.00 3.00 3.00 10.8 13.5 8.5 1.5/1.5
h
H
P P
T
L
b1
d1 d2

045 www.sfrchain.com
