WAVE / GELOMBANG

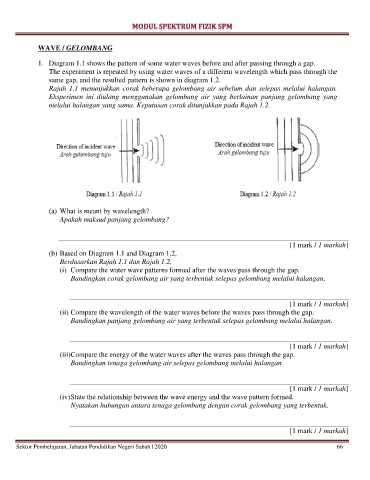

1. Diagram 1.1 shows the pattern of some water waves before and after passing through a gap.
The experiment is repeated by using water waves of a different wavelength which pass through the
same gap, and the resulted pattern is shown in diagram 1.2.
Rajah 1.1 menunjukkan corak beberapa gelombang air sebelum dan selepas melalui halangan.
Eksperimen ini diulang menggunakan gelombang air yang berlainan panjang gelombang yang
melalui halangan yang sama. Keputusan corak ditunjukkan pada Rajah 1.2.

(a) What is meant by wavelength?
Apakah maksud panjang gelombang?

[1 mark / 1 markah]
(b) Based on Diagram 1.1 and Diagram 1.2,
Berdasarkan Rajah 1.1 dan Rajah 1.2,
(i) Compare the water wave patterns formed after the waves pass through the gap.
Bandingkan corak gelombang air yang terbentuk selepas gelombang melalui halangan.

[1 mark / 1 markah]
(ii) Compare the wavelength of the water waves before the waves pass through the gap.
Bandingkan panjang gelombang air yang terbentuk selepas gelombang melalui halangan.

[1 mark / 1 markah]
(iii)Compare the energy of the water waves after the waves pass through the gap.
Bandingkan tenaga gelombang air selepas gelombang melalui halangan

[1 mark / 1 markah]
(iv) State the relationship between the wave energy and the wave pattern formed.
Nyatakan hubungan antara tenaga gelombang dengan corak gelombang yang terbentuk.

[1 mark / 1 markah]
