(d) If the bulb in Diagram 2.2 is replaced with a spotlight labelled “240V, 100W”, can the spotlight be
lit up? Give your reason.
Jika mentol dalam Rajah 2.2 diganti dengan lampu sorot berlabel “240V, 100W”,
dapatkah lampu sorot itu dinyalakan? Berikan sebab anda.
[2 marks / 2 markah]
3. (a) What is meant by a semiconductor?
Apakah yang dimaksudkan dengan semikonduktor?
[1 mark / 1 markah]

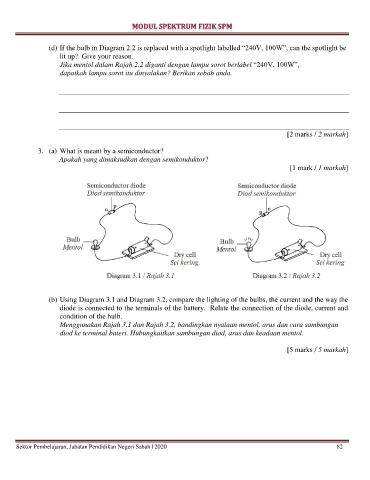

(b) Using Diagram 3.1 and Diagram 3.2, compare the lighting of the bulbs, the current and the way the
diode is connected to the terminals of the battery. Relate the connection of the diode, current and
condition of the bulb.
Menggunakan Rajah 3.1 dan Rajah 3.2, bandingkan nyalaan mentol, arus dan cara sambungan
diod ke terminal bateri. Hubungkaitkan sambungan diod, arus dan keadaan mentol.
[5 marks / 5 markah]
