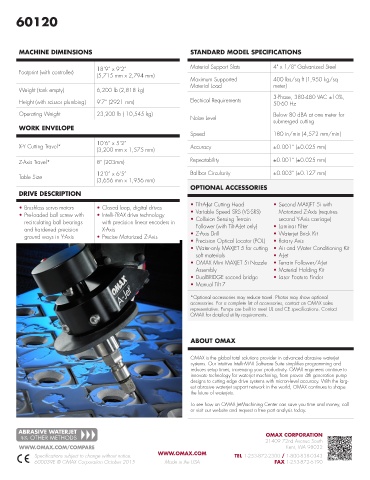

Page 14 - Waterjet

60120

MACHINE DIMENSIONS STANDARD MODEL SPECIFICATIONS

18’9” x 9’2” Material Support Slats 4" x 1/8" Galvanized Steel
Footprint (with controller)
(5,715 mm x 2,794 mm)
Maximum Supported 400 lbs/sq ft (1,950 kg/sq
Material Load meter)
Weight (tank empty) 6,200 lb (2,818 kg)
3-Phase, 380-480 VAC ±10%,
Height (with scissor plumbing) 9’7” (2921 mm) Electrical Requirements 50-60 Hz
Operating Weight 23,200 lb ( 10,545 kg) Below 80 dBA at one meter for
Noise Level
submerged cutting
WORK ENVELOPE
Speed 180 in/min (4,572 mm/min)
10’6” x 5’2”
X-Y Cutting Travel* Accuracy ±0.001” (±0.025 mm)
(3,200 mm x 1,575 mm)
Z-Axis Travel* 8” (203mm) Repeatability ±0.001” (±0.025 mm)
12’0” x 6’5” Ballbar Circularity ±0.003” (±0.127 mm)
Table Size
(3,656 mm x 1,956 mm)
OPTIONAL ACCESSORIES
DRIVE DESCRIPTION

• Tilt-A-Jet Cutting Head • Second MAXJET 5i with
• Brushless servo motors • Closed loop, digital drives
• Pre-loaded ball screw with • Intelli-TRAX drive technology • Variable Speed SRS (VS-SRS) Motorized Z-Axis (requires
recirculating ball bearings with precision linear encoders in • Collision Sensing Terrain second Y-Axis carriage)
and hardened precision X-Axis Follower (with Tilt-A-Jet only) • Laminar Filter
ground ways in Y-Axis • Precise Motorized Z-Axis • Z-Axis Drill • Waterjet Brick Kit
• Precision Optical Locator (POL) • Rotary Axis
• Water-only MAXJET 5 for cutting • Air and Water Conditioning Kit
soft materials • A-Jet
• OMAX Mini MAXJET 5i Nozzle • Terrain Follower/A-Jet
Assembly • Material Holding Kit
• DualBRIDGE second bridge • Laser Feature Finder
• Manual Tilt Z

*Optional accessories may reduce travel. Photos may show optional
accessories. For a complete list of accessories, contact an OMAX sales
representative. Pumps are built to meet UL and CE specifications. Contact
OMAX for detailed utility requirements.

ABOUT OMAX

OMAX is the global total solutions provider in advanced abrasive waterjet
systems. Our intuitive Intelli-MAX Software Suite simplifies programming and
reduces setup times, increasing your productivity. OMAX engineers continue to
innovate technology for waterjet machining, from proven 4th generation pump
designs to cutting edge drive systems with micron-level accuracy. With the larg-
est abrasive waterjet support network in the world, OMAX continues to shape
the future of waterjets.

To see how an OMAX JetMachining Center can save you time and money, call
or visit our website and request a free part analysis today.
