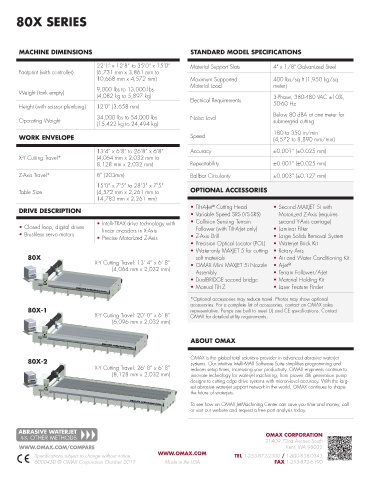

80X SERIES

MACHINE DIMENSIONS STANDARD MODEL SPECIFICATIONS

22’1” x 12’8” to 35’0” x 15’0” Material Support Slats 4" x 1/8" Galvanized Steel
Footprint (with controller) (6,731 mm x 3,861 mm to
10,668 mm x 4,572 mm) Maximum Supported 400 lbs/sq ft (1,950 kg/sq
Material Load meter)
9,000 lbs to 13,000 lbs
Weight (tank empty)
(4,082 kg to 5,897 kg) 3-Phase, 380-480 VAC ±10%,
Electrical Requirements
Height (with scissor plumbing) 12’0” (3,658 mm) 50-60 Hz
34,000 lbs to 54,000 lbs Noise Level Below 80 dBA at one meter for
Operating Weight submerged cutting
(15,422 kg to 24,494 kg)
180 to 350 in/min
WORK ENVELOPE Speed (4,572 to 8,890 mm/min)
13’4” x 6’8” to 26’8” x 6’8” Accuracy ±0.001” (±0.025 mm)
X-Y Cutting Travel* (4,064 mm x 2,032 mm to
8,128 mm x 2,032 mm) Repeatability ±0.001” (±0.025 mm)
Z-Axis Travel* 8” (203mm) Ballbar Circularity ±0.003” (±0.127 mm)

15’0” x 7’5” to 28’3” x 7’5”
Table Size (4,572 mm x 2,261 mm to OPTIONAL ACCESSORIES
14,783 mm x 2,261 mm)
• Tilt-A-Jet Cutting Head • Second MAXJET 5i with
®
DRIVE DESCRIPTION
• Variable Speed SRS (VS-SRS) Motorized Z-Axis (requires
• Intelli-TRAX drive technology with • Collision Sensing Terrain second Y-Axis carriage)
• Closed loop, digital drives linear encoders in X-Axis Follower (with Tilt-A-Jet only) • Laminar Filter
• Brushless servo motors • Z-Axis Drill • Large Solids Removal System
• Precise Motorized Z-Axis
• Precision Optical Locator (POL) • Waterjet Brick Kit
• Water-only MAXJET 5 for cutting • Rotary Axis
80X soft materials • Air and Water Conditioning Kit
X-Y Cutting Travel: 13’ 4” x 6’ 8” • OMAX Mini MAXJET 5i Nozzle • A-Jet ®
(4,064 mm x 2,032 mm)
Assembly • Terrain Follower/A-Jet
• DualBRIDGE second bridge • Material Holding Kit
• Manual Tilt Z • Laser Feature Finder

*Optional accessories may reduce travel. Photos may show optional
accessories. For a complete list of accessories, contact an OMAX sales
80X-1 representative. Pumps are built to meet UL and CE specifications. Contact
X-Y Cutting Travel: 20’ 0” x 6’ 8” OMAX for detailed utility requirements.
(6,096 mm x 2,032 mm)

ABOUT OMAX

OMAX is the global total solutions provider in advanced abrasive waterjet
80X-2 systems. Our intuitive Intelli-MAX Software Suite simplifies programming and
X-Y Cutting Travel: 26’ 8” x 6’ 8” reduces setup times, increasing your productivity. OMAX engineers continue to
(8,128 mm x 2,032 mm) innovate technology for waterjet machining, from proven 4th generation pump
designs to cutting edge drive systems with micron-level accuracy. With the larg-
est abrasive waterjet support network in the world, OMAX continues to shape
the future of waterjets.

To see how an OMAX JetMachining Center can save you time and money, call
or visit our website and request a free part analysis today.

ABRASIVE WATERJET
vs. OTHER METHODS OMAX CORPORATION
21409 72nd Avenue South
WWW.OMAX.COM/COMPARE Kent, WA 98032
Specifications subject to change without notice. WWW.OMAX.COM TEL 1-253-872-2300 / 1-800-838-0343
600045D © OMAX Corporation October 2015 Made in the USA FAX 1-253-872-6190
