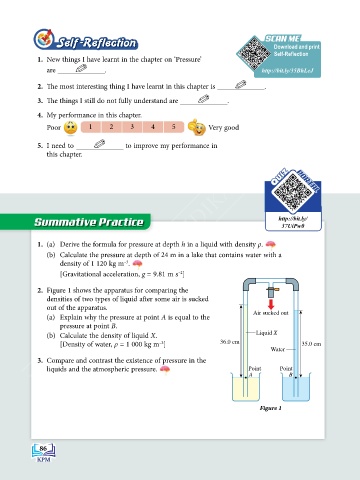

Page 96 - Physics Form 5 KSSM_Neat

SCAN ME
Self-Reflection SCAN ME
Self-Reflection
Download and print
Self-Reflection
1. New things I have learnt in the chapter on ‘Pressure’
are ✎ . http://bit.ly/35BhLeJ

2. The most interesting thing I have learnt in this chapter is ✎ .
KEMENTERIAN PENDIDIKAN MALAYSIA
3. The things I still do not fully understand are ✎ .

4. My performance in this chapter.
Poor 1 2 3 4 5 Very good

5. I need to ✎ to improve my performance in
this chapter.

Summative Practice http://bit.ly/
37UiPw0

1. (a) Derive the formula for pressure at depth h in a liquid with density ρ.
(b) Calculate the pressure at depth of 24 m in a lake that contains water with a
density of 1 120 kg m .
–3
[Gravitational acceleration, g = 9.81 m s ]
–2

2. Figure 1 shows the apparatus for comparing the
densities of two types of liquid after some air is sucked
out of the apparatus.
(a) Explain why the pressure at point A is equal to the Air sucked out
pressure at point B.
(b) Calculate the density of liquid X. Liquid X
[Density of water, ρ = 1 000 kg m ] 36.0 cm 35.0 cm
–3
Water
3. Compare and contrast the existence of pressure in the
liquids and the atmospheric pressure. Point Point
A B

Figure 1

86
