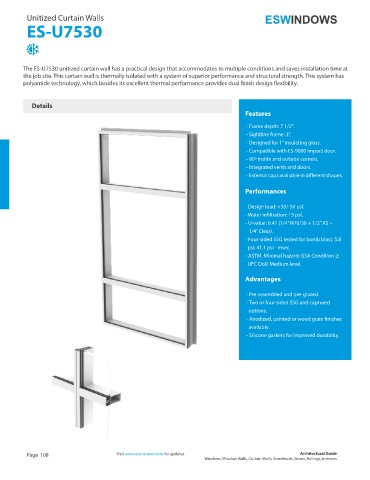

Unitized Curtain Walls
ES-U7530

The ES-U7530 unitized curtain wall has a practical design that accommodates to multiple conditions and saves installation time at
the job site. This curtain wall is thermally isolated with a system of superior performance and structural strength. This system has
polyamide technology, which besides its excellent thermal performance provides dual finish design flexibility.

Details
Features

- Frame depth: 7 1/2”.
- Sightline frame: 3”.
- Designed for 1” insulating glass.
- Compatible with ES-9000 impact door.
- 90º inside and outside corners.
- Integrated vents and doors.
- External caps available in different shapes.
Performances

- Design load: +50/-50 psf.
- Water infiltration: 15 psf.
- U-value: 0.41 (1/4” N70/38 + 1/2” AS +
--1/4” Clear).
- Four-sided SSG tested for bomb blast: 5.8
psi; 41.1 psi - msec.
- ASTM. Minimal hazard; GSA Condition 2;
UFC DoD Medium level.

Advantages

- Pre-assembled and pre-glazed.
- Two or four-sided SSG and captured
options.
- Anodized, painted or wood grain finishes
available.
- Silicone gaskets for improved durability.
