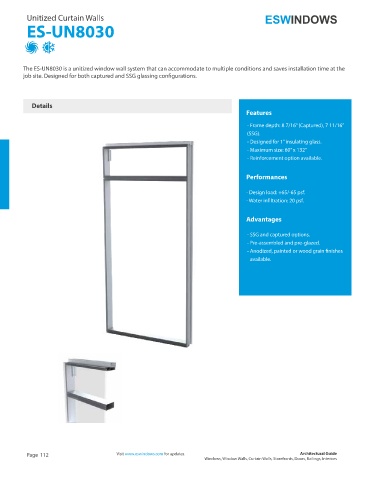

P. 112
Unitized Curtain Walls
ES-UN8030
The ES-UN8030 is a unitized window wall system that can accommodate to multiple conditions and saves installation time at the
job site. Designed for both captured and SSG glassing configurations.
Details
Features
- Frame depth: 8 7/16” (Captured), 7 11/16”
(SSG).
- Designed for 1” insulating glass.
- Maximum size: 60” x 132”
- Reinforcement option available.
Performances
- Design load: +65/-65 psf.
- Water infiltration: 20 psf.
Advantages
- SSG and captured options.
- Pre-assembled and pre-glazed.
- Anodized, painted or wood grain finishes
- available.
