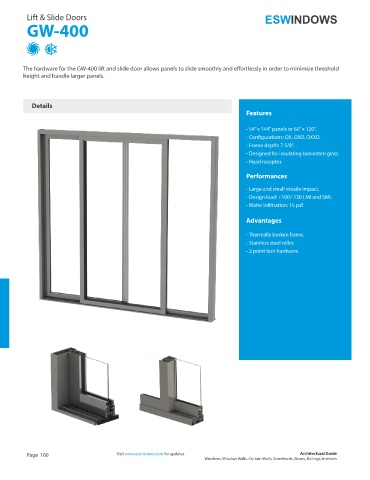

Page 160 - Architectural Guide ESWindows 2019
P. 160
Lift & Slide Doors
GW-400
The hardware for the GW-400 lift and slide door allows panels to slide smoothly and effortlessly in order to minimize threshold
height and handle larger panels.
Details
Features
- 54” x 144” panels or 60” x 120”.
- Configurations: OX, OXO, OXXO.
- Frame depth: 7 5/8”.
- Designed for insulating laminated glass.
- Head receptor.
Performances
- Large and small missile impact.
- Design load: +100/-130 LMI and SMI.
- Water infiltration: 15 psf.
Advantages
- Thermally broken frame.
- Stainless steel roller.
- 2 point lock hardware.
