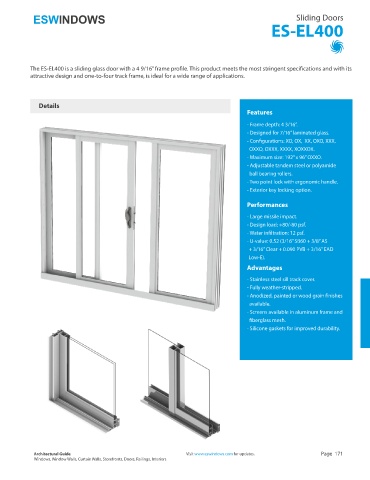

Page 171 - Architectural Guide ESWindows 2019

Sliding Doors
ES-EL400

The ES-EL400 is a sliding glass door with a 4 9/16” frame profile. This product meets the most stringent specifications and with its
attractive design and one-to-four track frame, is ideal for a wide range of applications.

Details
Features

- Frame depth: 4 3/16”.
- Designed for 7/16” laminated glass.
- Configurations: XO, OX, XX, OXO, XXX,
OXXO, OXXX, XXXX, XOXXOX.
- Maximum size: 192” x 96” OXXO.
- Adjustable tandem steel or polyamide
ball bearing rollers.
- Two point lock with ergonomic handle.
- Exterior key locking option.

Performances

- Large missile impact.
- Design load: +80/-80 psf.
- Water infiltration: 12 psf.
- U-value: 0.52 (3/16” SB60 + 3/8” AS
-+ 3/16” Clear + 0.090 PVB + 3/16” EAD
-Low-E).
Advantages

- Stainless steel sill track cover.
- Fully weather-stripped.
- Anodized, painted or wood grain finishes
available.
- Screens available in aluminum frame and
fiberglass mesh.
- Silicone gaskets for improved durability.
