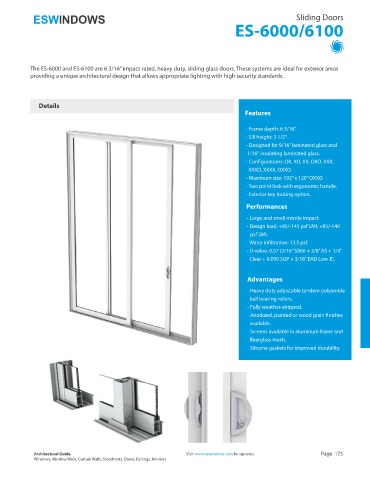

Page 175 - Architectural Guide ESWindows 2019

Sliding Doors
ES-6000/6100

The ES-6000 and ES-6100 are 6 3/16” impact rated, heavy duty, sliding glass doors. These systems are ideal for exterior areas
providing a unique architectural design that allows appropriate lighting with high security standards.

Details
Features

- Frame depth: 6 3/16”.
- Sill height: 3 1/2”.
- Designed for 9/16” laminated glass and
1/16” insulating laminated glass.
- Configurations: OX, XO, XX, OXO, XXX,
XXXO, XXXX, OXXO.
- Maximum size: 192” x 120” OXXO.
- Two point lock with ergonomic handle.
- Exterior key locking option.

Performances
- Large and small missile impact.
- Design load: +85/-145 psf LMI; +85/-140
psf SMI.
- Water infiltration: 13.5 psf.
- U-value: 0.57 (3/16” SB60 + 3/8” AS + 1/4”
- Clear + 0.090 SGP + 3/16” EAD Low-E).

Advantages
- Heavy duty adjustable tandem polyamide
ball bearing rollers.
- Fully weather-stripped.
- Anodized, painted or wood grain finishes
available.
- Screens available in aluminum frame and
fiberglass mesh.
- Silicone gaskets for improved durability.
