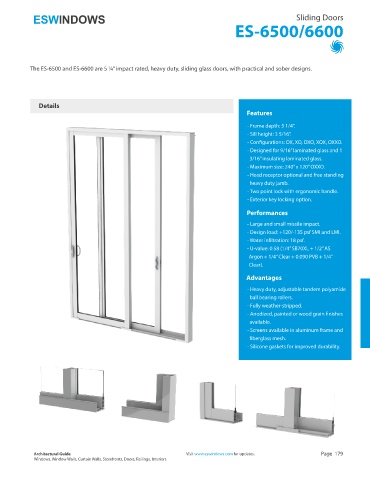

Page 179 - Architectural Guide ESWindows 2019

Sliding Doors
ES-6500/6600

The ES-6500 and ES-6600 are 5 ¼” impact rated, heavy duty, sliding glass doors, with practical and sober designs.

Details
Features

- Frame depth: 5 1/4”.
- Sill height: 3 5/16”.
- Configurations: OX, XO, OXO, XOX, OXXO.
- Designed for 9/16” laminated glass and 1
3/16” insulating laminated glass.
- Maximum size: 240” x 120” OXXO.
- Head receptor optional and free standing
heavy duty jamb.
- Two point lock with ergonomic handle.
- Exterior key locking option.

Performances

- Large and small missile impact.
- Design load: +120/-135 psf SMI and LMI.
- Water infiltration: 18 psf.
- U-value: 0.58 (1/4” SB70XL + 1/2” AS
-Argon + 1/4” Clear + 0.090 PVB + 1/4”
-Clear).
Advantages

- Heavy duty, adjustable tandem polyamide
ball bearing rollers.
- Fully weather-stripped.
- Anodized, painted or wood grain finishes
available.
- Screens available in aluminum frame and
fiberglass mesh.
- Silicone gaskets for improved durability.
