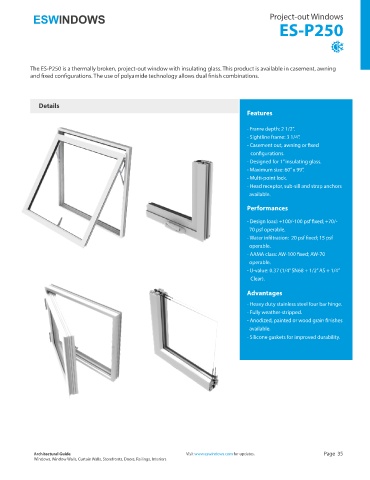

Page 35 - Architectural Guide ESWindows 2019

Project-out Windows
ES-P250

The ES-P250 is a thermally broken, project-out window with insulating glass. This product is available in casement, awning
and fixed configurations. The use of polyamide technology allows dual finish combinations.

Details
Features

- Frame depth: 2 1/2”.
- Sightline frame: 3 1/4”.
- Casement out, awning or fixed
configurations.
- Designed for 1” insulating glass.
- Maximum size: 60” x 99”.
- Multi-point lock.
- Head receptor, sub-sill and strap anchors
available.

Performances

- Design load: +100/-100 psf fixed; +70/-
70 psf operable.
- Water infiltration: 20 psf fixed; 15 psf
operable.
- AAMA class: AW-100 fixed; AW-70
operable.
- U-value: 0.37 (1/4” SN68 + 1/2” AS + 1/4”
--Clear).

Advantages
- Heavy duty stainless steel four bar hinge.
- Fully weather-stripped.
- Anodized, painted or wood grain finishes
available.
- Silicone gaskets for improved durability.
