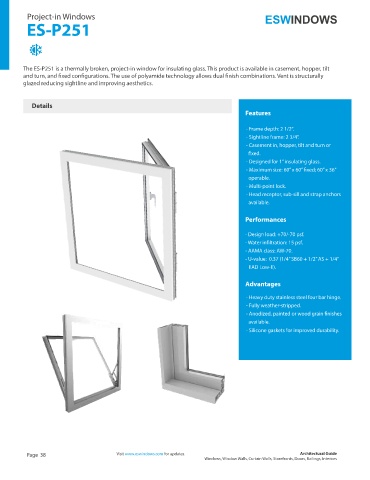

Page 38 - Architectural Guide ESWindows 2019

Project-in Windows
ES-P251

The ES-P251 is a thermally broken, project-in window for insulating glass. This product is available in casement, hopper, tilt
and turn, and fixed configurations. The use of polyamide technology allows dual finish combinations. Vent is structurally
glazed reducing sightline and improving aesthetics.

Details
Features

- Frame depth: 2 1/2”.
- Sightline frame: 2 3/4”.
- Casement in, hopper, tilt and turn or
fixed.
- Designed for 1” insulating glass.
- Maximum size: 60” x 60” fixed; 60” x 36”
operable.
- Multi-point lock.
- Head receptor, sub-sill and strap anchors
available.

Performances

- Design load: +70/-70 psf.
- Water infiltration: 15 psf.
- AAMA class: AW-70.
- U-value: 0.37 (1/4” SB60 + 1/2” AS + 1/4”
--EAD Low-E).

Advantages

- Heavy duty stainless steel four bar hinge.
- Fully weather-stripped.
- Anodized, painted or wood grain finishes
available.
- Silicone gaskets for improved durability.
