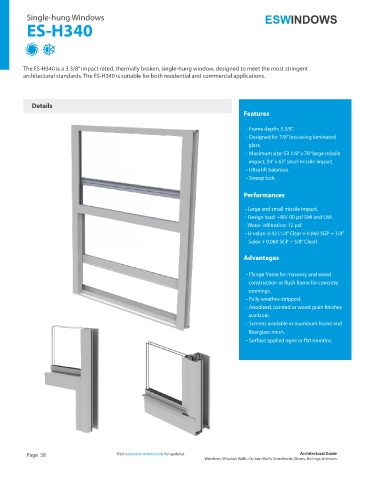

Single-hung Windows
ES-H340

The ES-H340 is a 3 3/8” impact rated, thermally broken, single-hung window, designed to meet the most stringent
architectural standards. The ES-H340 is suitable for both residential and commercial applications.

Details
Features

- Frame depth: 3 3/8”.
- Designed for 7/8” insulating laminated
glass.
- Maximum size: 53 1/8” x 78” large missile
impact, 54” x 63” small missile impact.
- Ultra lift balances.
- Sweep lock.

Performances

- Large and small missile impact.
- Design load: +80/-90 psf SMI and LMI.
- Water infiltration: 12 psf.
- U-value: 0.43 (1/4” Clear + 0.060 SGP + 3/8”
--Solex + 0.060 SGP + 3/8” Clear).

Advantages

- Flange frame for masonry and wood
construction or flush frame for concrete
openings.
- Fully weather-stripped.
- Anodized, painted or wood grain finishes
available.
- Screens available in aluminum frame and
fiberglass mesh.
- Surface applied ogee or flat muntins.
