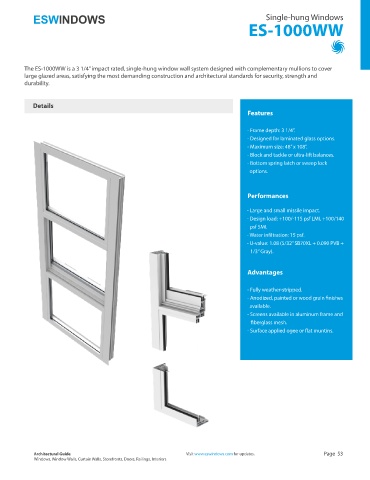

Page 53 - Architectural Guide ESWindows 2019

Single-hung Windows
ES-1000WW

The ES-1000WW is a 3 1/4” impact rated, single-hung window wall system designed with complementary mullions to cover
large glazed areas, satisfying the most demanding construction and architectural standards for security, strength and
durability.

Details
Features

- Frame depth: 3 1/4”.
- Designed for laminated glass options.
- Maximum size: 48” x 108”.
- Block and tackle or ultra-lift balances.
- Bottom spring latch or sweep lock
options.

Performances

- Large and small missile impact.
- Design load: +100/-115 psf LMI, +100/140
- psf SMI.
- Water infiltration: 15 psf.
- U-value: 1.08 (5/32” SB70XL + 0.090 PVB +
--1/3” Gray).

Advantages

- Fully weather-stripped.
- Anodized, painted or wood grain finishes
available.
- Screens available in aluminum frame and
fiberglass mesh.
- Surface applied ogee or flat muntins.
