Window Walls

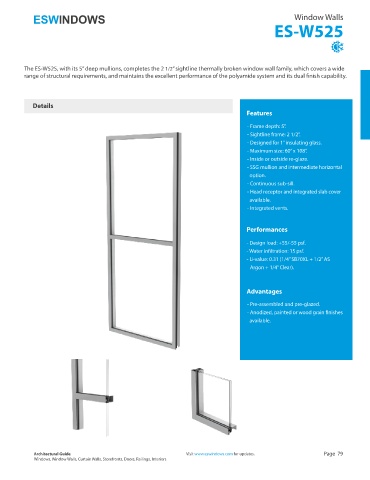

ES-W525

The ES-W525, with its 5” deep mullions, completes the 2 1/2” sightline thermally broken window wall family, which covers a wide
range of structural requirements, and maintains the excellent performance of the polyamide system and its dual finish capability.

Details
Features

- Frame depth: 5”.
- Sightline frame: 2 1/2”.
- Designed for 1” insulating glass.
- Maximum size: 60” x 108”.
- Inside or outside re-glaze.
- SSG mullion and intermediate horizontal
option.
- Continuous sub-sill.
- Head receptor and integrated slab cover
available.
- Integrated vents.

Performances

- Design load: +55/-55 psf.
- Water infiltration: 15 psf.
- U-value: 0.31 (1/4” SB70XL + 1/2” AS
--Argon + 1/4” Clear).

Advantages

- Pre-assembled and pre-glazed.
- Anodized, painted or wood grain finishes
available.
