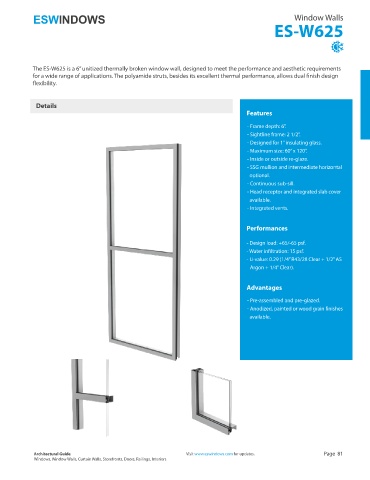

Page 81 - Architectural Guide ESWindows 2019

Window Walls
ES-W625

The ES-W625 is a 6” unitized thermally broken window wall, designed to meet the performance and aesthetic requirements
for a wide range of applications. The polyamide struts, besides its excellent thermal performance, allows dual finish design
flexibility.

Details
Features

- Frame depth: 6”.
- Sightline frame: 2 1/2”.
- Designed for 1” insulating glass.
- Maximum size: 60” x 120”.
- Inside or outside re-glaze.
- SSG mullion and intermediate horizontal
optional.
- Continuous sub-sill.
- Head receptor and integrated slab cover
available.
- Integrated vents.

Performances

- Design load: +65/-65 psf.
- Water infiltration: 15 psf.
- U-value: 0.29 (1/4” R43/28 Clear + 1/2” AS
--Argon + 1/4” Clear).

Advantages

- Pre-assembled and pre-glazed.
- Anodized, painted or wood grain finishes
available.
