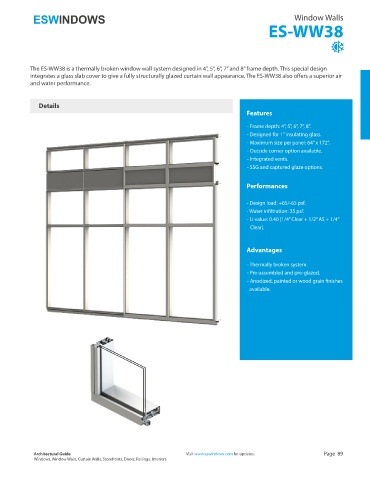

Page 89 - Architectural Guide ESWindows 2019

Window Walls
ES-WW38

The ES-WW38 is a thermally broken window wall system designed in 4”, 5”, 6”, 7” and 8” frame depth. This special design
integrates a glass slab cover to give a fully structurally glazed curtain wall appearance. The ES-WW38 also offers a superior air
and water performance.

Details
Features

- Frame depth: 4”, 5”, 6”, 7”, 8”.
- Designed for 1” insulating glass.
- Maximum size per panel: 64” x 172”.
- Outside corner option available.
- Integrated vents.
- SSG and captured glaze options.

Performances

- Design load: +65/-65 psf.
- Water infiltration: 35 psf.
- U-value: 0.40 (1/4” Clear + 1/2” AS + 1/4”
--Clear).

Advantages

- Thermally broken system.
- Pre-assembled and pre-glazed.
- Anodized, painted or wood grain finishes
available.
