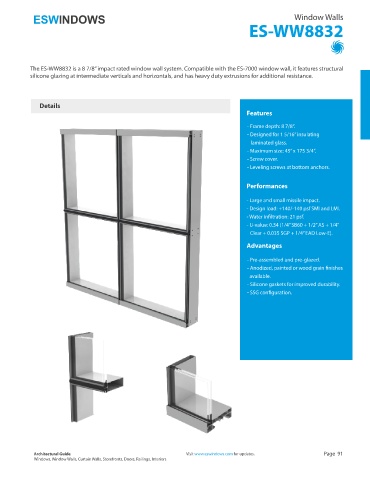

Page 91 - Architectural Guide ESWindows 2019

Window Walls
ES-WW8832

The ES-WW8832 is a 8 7/8” impact rated window wall system. Compatible with the ES-7000 window wall, it features structural
silicone glazing at intermediate verticals and horizontals, and has heavy duty extrusions for additional resistance.

Details
Features

- Frame depth: 8 7/8”.
- Designed for 1 5/16” insulating
laminated glass.
- Maximum size: 45” x 175 3/4”.
- Screw cover.
- Leveling screws at bottom anchors.

Performances

- Large and small missile impact.
- Design load: +140/-140 psf SMI and LMI.
- Water infiltration: 21 psf.
- U-value: 0.34 (1/4” SB60 + 1/2” AS + 1/4”
--Clear + 0.035 SGP + 1/4” EAD Low-E).

Advantages

- Pre-assembled and pre-glazed.
- Anodized, painted or wood grain finishes
available.
- Silicone gaskets for improved durability.
- SSG configuration.
