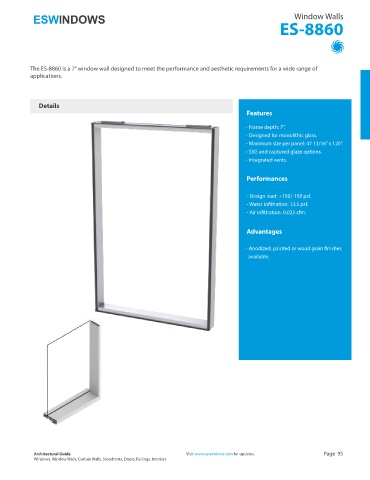

Page 95 - Architectural Guide ESWindows 2019

Window Walls
ES-8860

The ES-8860 is a 7” window wall designed to meet the performance and aesthetic requirements for a wide range of
applications.

v
Details
Features

- Frame depth: 7”.
- Designed for monolithic glass.
- Maximum size per panel: 47 13/16” x 120”.
- SSG and captured glaze options.
- Integrated vents.

Performances

- Design load: +150/-150 psf.
- Water infiltration: 13.5 psf.
- Air infiltration: 0.025 cfm.

Advantages

- Anodized, painted or wood grain finishes
available.
