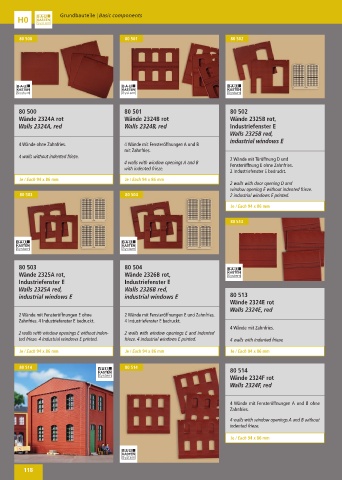

Page 118 - Auhagen Gesamtkatalog 2021
P. 118
Grundbauteile | Basic components
H0
80 500 80 501 80 502
80 500 80 501 80 502
Wände 2324A rot Wände 2324B rot Wände 2325B rot,
Walls 2324A, red Walls 2324B, red Industriefenster E
Walls 2325B red,
industrial windows E
4 Wände ohne Zahnfries. 4 Wände mit Fensteröffnungen A und B
mit Zahnfries.
4 walls without indented frieze. 2 Wände mit Türöffnung D und
4 walls with window openings A and B Fensteröffnung E ohne Zahnfries.
with indented frieze. 2 Industriefenster E bedruckt.
Je / Each 94 x 86 mm Je / Each 94 x 86 mm
2 walls with door opening D and
window opening E without indented frieze.
80 503 80 504 2 industrial windows E printed.
Je / Each 94 x 86 mm
80 513
80 503 80 504
Wände 2325A rot, Wände 2326B rot,
Industriefenster E Industriefenster E
Walls 2325A red, Walls 2326B red,
industrial windows E industrial windows E 80 513
Wände 2324E rot
Walls 2324E, red
2 Wände mit Fensteröffnungen E ohne 2 Wände mit Fensteröffnungen E und Zahnfries.
Zahnfries. 4 Industriefenster E bedruckt. 4 Industriefenster E bedruckt.
4 Wände mit Zahnfries.
2 walls with window openings E without inden- 2 walls with window openings E and indented
ted frieze. 4 industrial windows E printed. frieze. 4 industrial windows E printed. 4 walls with indented frieze.
Je / Each 94 x 86 mm Je / Each 94 x 86 mm Je / Each 94 x 86 mm
80 514 80 514
80 514
Wände 2324F rot
Walls 2324F, red
4 Wände mit Fensteröffnungen A und B ohne
Zahnfries.
4 walls with window openings A and B with out
indented frieze.
Je / Each 94 x 86 mm
118
