TECH INNOVATION #TOOL HOLDING

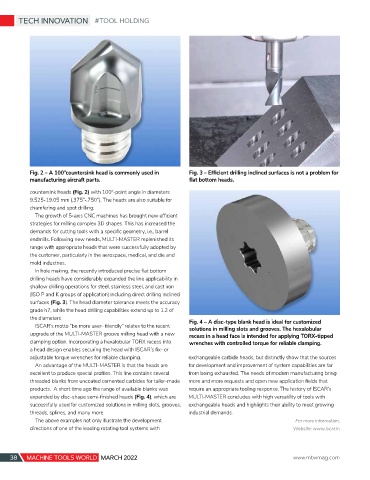

Fig. 2 – A 100°countersink head is commonly used in Fig. 3 – Efficient drilling inclined surfaces is not a problem for
manufacturing aircraft parts. flat bottom heads.

countersink heads (Fig. 2) with 100°-point angle in diameters
9.525-19.05 mm (.375”-.750”). The heads are also suitable for
chamfering and spot drilling.
The growth of 5-axis CNC machines has brought new efficient
strategies for milling complex 3D shapes. This has increased the
demands for cutting tools with a specific geometry, i.e., barrel
endmills. Following new needs, MULTI-MASTER replenished its
range with appropriate heads that were successfully adopted by
the customer, particularly in the aerospace, medical, and die and
mold industries.
In hole making, the recently introduced precise flat bottom
drilling heads have considerably expanded the line applicability in
shallow drilling operations for steel, stainless steel, and cast iron
(ISO P and K groups of application) including direct drilling inclined
surfaces (Fig. 3). The head diameter tolerance meets the accuracy
grade h7, while the head drilling capabilities extend up to 1.2 of
the diameters. Fig. 4 – A disc-type blank head is ideal for customized
ISCAR’s motto “be more user- friendly” relates to the recent solutions in milling slots and grooves. The hexalobular
upgrade of the MULTI-MASTER groove milling head with a new recess in a head face is intended for applying TORX-tipped
clamping option. Incorporating a hexalobular TORX recess into wrenches with controlled torque for reliable clamping.
a head design enables securing the head with ISCAR’s fix- or
adjustable torque wrenches for reliable clamping. exchangeable carbide heads, but distinctly show that the sources
An advantage of the MULTI-MASTER is that the heads are for development and improvement of system capabilities are far
excellent to produce special profiles. This line contains several from being exhausted. The needs of modern manufacturing bring
threaded blanks from uncoated cemented carbides for tailor-made more and more requests and open new application fields that
products. A short time ago the range of available blanks was require an appropriate tooling response. The history of ISCAR’s
expanded by disc-shape semi-finished heads (Fig. 4), which are MULTI-MASTER concludes with high versatility of tools with
successfully used for customized solutions in milling slots, grooves, exchangeable heads and highlights their ability to meet growing
threads, splines, and many more. industrial demands.
The above examples not only illustrate the development For more information,
directions of one of the leading rotating tool systems with Website: www.iscar.in
