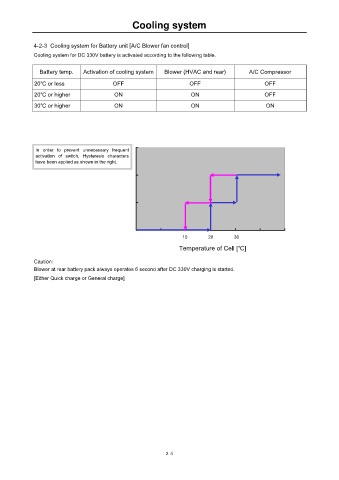

Cooling system
4-2-3 Cooling system for Battery unit [A/C Blower fan control]
Cooling system for DC 330V battery is activated according to the following table.
Battery temp. Activation of cooling system Blower (HVAC and rear) A/C Compressor
20℃ or less OFF OFF OFF
20℃ or higher ON ON OFF
30℃ or higher ON ON ON
In order to prevent unnecessary frequent
activation of switch, Hysteresis characters
have been applied as shown in the right.
10 20 30
Temperature of Cell [℃]
Caution:
Blower at rear battery pack always operates 6 second after DC 330V charging is started.
[Either Quick charge or General charge]
