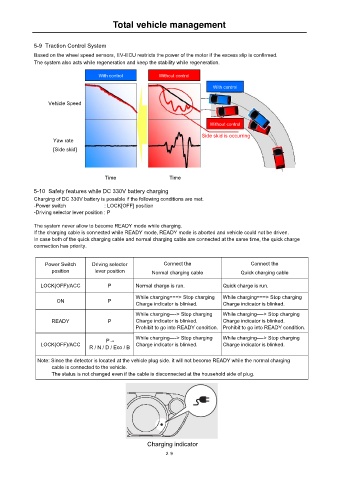

Total vehicle management

5-9 Traction Control System
Based on the wheel speed sensors, EV-ECU restricts the power of the motor if the excess slip is confirmed.
The system also acts while regeneration and keep the stability while regeneration.

With control Without control
With control

Vehicle Speed

Without control

Side skid is occurring
Yaw rate
[Side skid]

Time Time

5-10 Safety features while DC 330V battery charging
Charging of DC 330V battery is possible if the following conditions are met.
-Power switch : LOCK[OFF] position
-Driving selector lever position : P

The system never allow to become READY mode while charging.
If the charging cable is connected while READY mode, READY mode is aborted and vehicle could not be driven.
In case both of the quick charging cable and normal charging cable are connected at the same time, the quick charge
connection has priority.

Power Switch Driving selector Connect the Connect the
position lever position Normal charging cable Quick charging cable

LOCK(OFF)/ACC P Normal charge is run. Quick charge is run.
While charging===> Stop charging While charging===> Stop charging
ON Ｐ Charge indicator is blinked. Charge indicator is blinked.

While charging—-> Stop charging While charging—-> Stop charging
READY Ｐ Charge indicator is blinked. Charge indicator is blinked.
Prohibit to go into READY condition. Prohibit to go into READY condition.

Ｐ→ While charging—-> Stop charging While charging—-> Stop charging
LOCK(OFF)/ACC Charge indicator is blinked. Charge indicator is blinked.
R / N / D / Eco / B
Note: Since the detector is located at the vehicle plug side. it will not become READY while the normal charging
cable is connected to the vehicle.
The status is not changed even if the cable is disconnected at the household side of plug.

Charging indicator
