New Special tool

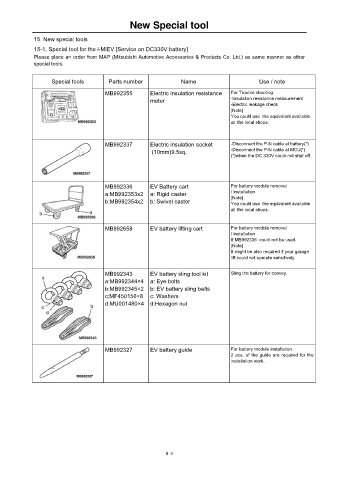

15. New special tools
15-1. Special tool for the i-MiEV [Service on DC330V battery]
Please place an order from MAP (Mitsubishi Automotive Accessories & Products Co. Ltd.) as same manner as other
special tools.

Special tools Parts number Name Use / note

MB992355 Electric insulation resistance For Trouble shooting
meter -Insulation resistance measurement
-Electric leakage check
[Note]
You could use the equivalent available
at the local shops.

MB992337 Electric insulation socket -Disconnect the P-N cable at battery(*)
(10mm)9.5sq. -Disconnect the P-N cable at MCU(*)
(*)when the DC 330V could not shut off.

MB992336 EV Battery cart For battery module removal
a:MB992353x2 a: Rigid caster / installation
[Note]
b:MB992354x2 b: Swivel caster You could use the equivalent available
at the local shops.

MB992659 EV battery lifting cart For battery module removal
/ installation
If MB992336 could not be used.
[Note]
It might be also required if your garage
lift could not operate sensitively.

MB992343 EV battery sling tool kit Sling the battery for convey.
a:MB992344×4 a: Eye bolts
b:MB992345×2 b: EV battery sling belts
c:MF450156×8 c: Washers
d:MU001480×4 d:Hexagon nut

MB992327 EV battery guide For battery module installation.
2 pcs. of the guide are required for the
installation work.
