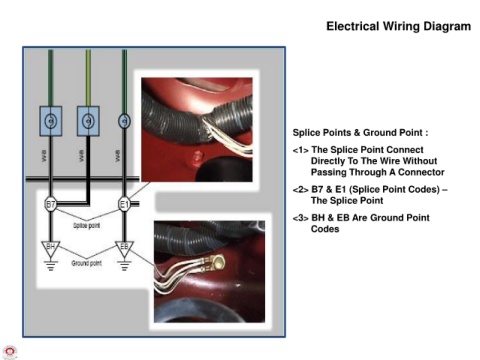

Electrical Wiring Diagram

Splice Points & Ground Point :

<1> The Splice Point Connect
Directly To The Wire Without
Passing Through A Connector

<2> B7 & E1 (Splice Point Codes) –

The Splice Point

<3> BH & EB Are Ground Point
Codes
