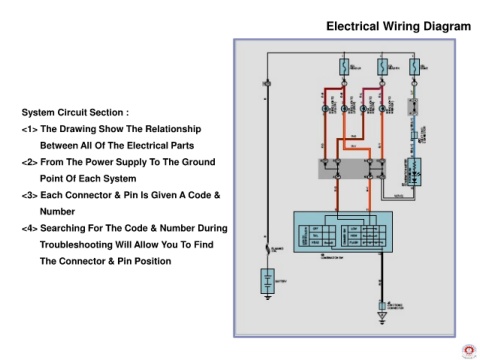

Electrical Wiring Diagram
System Circuit Section :
<1> The Drawing Show The Relationship
Between All Of The Electrical Parts
<2> From The Power Supply To The Ground
Point Of Each System
<3> Each Connector & Pin Is Given A Code &
Number
<4> Searching For The Code & Number During
Troubleshooting Will Allow You To Find
The Connector & Pin Position
