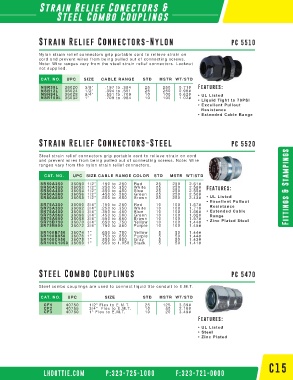

Page 77 - CAT31D

Strain Relief Conectors &
Steel Combo Couplings

Strain Relief Connectors-Nylon PC 5510

Nylon strain relief connectors grip portable cord to relieve strain on
cord and prevent wires from being pulled out of connecting screws.
Note: Wire ranges vary from the steel strain relief connectors. Locknut
not supplied.

CAT. NO. UPC SIZE CABLE RANGE STD MSTR WT/STD
NSR38L 36020 3/8” .197 to .394 25 250 0.71# Features:
NSR12L 36024 1/2” .394 to .551 25 250 0.96#
NSR34L 36028 3/4” .551 to .709 10 100 0.62# • UL Listed
NSR100L 36032 1” .709 to .984 10 100 1.02#
• Liquid Tight to 70PSI
• Excellent Pullout
Resistance
• Extended Cable Range

Strain Relief Connectors-Steel PC 5520

Steel strain relief connectors grip portable cord to relieve strain on cord
and prevent wires from being pulled out of connecting screws. Note: Wire
ranges vary from the nylon strain relief connectors.

CAT. NO. UPC SIZE CABLE RANGE COLOR STD MSTR WT/STD
SR50A250 36050 1/2” .150 to .250 Red 25 250 2.61#
SR50A350 36052 1/2” .250 to .350 White 25 250 2.58# Features: Fittings & Stampings
SR50A450 36054 1/2” .350 to .450 Blue 25 250 2.55#
SR50A560 36056 1/2” .450 to .560 Green 25 250 2.50#
SR50A650 36058 1/2” .550 to .650 Brown 25 250 2.43# • UL Listed
• Excellent Pullout
SR75A250 36060 3/4” .150 to .250 Red 10 100 1.67# Resistance
SR75A350 36062 3/4” .250 to .350 White 10 100 1.71#
SR75A450 36064 3/4” .350 to .450 Blue 10 100 1.66# • Extended Cable
SR75A560 36066 3/4” .450 to .560 Green 10 100 1.62# Range
SR75A650 36068 3/4” .550 to .650 Brown 10 100 1.57#
SR75B750 36070 3/4” .650 to .750 Yellow 10 100 1.44# • Zinc Plated Steel
SR75B850 36072 3/4” .750 to .850 Purple 10 100 1.45#
Fittings & Stampings
SR100B750 36074 1” .650 to .750 Yellow 5 50 1.44#
SR100B850 36076 1” .750 to .850 Purple 5 50 1.44#
SR100C950 36078 1” .850 to .950 Gray 5 50 1.43#
SR100C1050 36080 1” .950 to 1.050 Black 5 50 1.41#

Steel Combo Couplings PC 5470

Steel combo couplings are used to connect liquid tite conduit to E.M.T.

CAT. NO. UPC SIZE STD MSTR WT/STD
CF1 40750 1/2” Flex to E.M.T. 25 125 3.39#
CF2 40755 3/4” Flex to E.M.T. 10 50 2.16#
CF3 40760 1” Flex to E.M.T. 10 20 3.49#
Features:

• UL Listed
• Steel
• Zinc Plated

C14 C15
