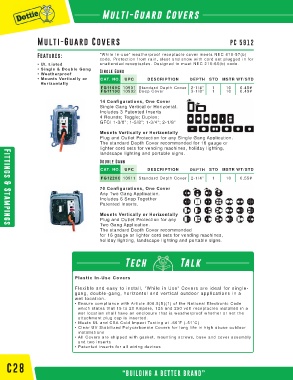

Page 90 - CAT31D

Multi-Guard Covers

Multi-Guard Covers PC 5912

Features: “While In-use” weatherproof receptacle cover meets NEC 410-57(b)
code. Protection from rain, sleet and snow with cord set plugged in for
• UL Listed unattended receptacles. Designed to meet NEC 210-60(b) code.
• Single & Double Gang Single Gang
• Weatherproof
• Mounts Vertically or CAT. NO. UPC DESCRIPTION DEPTH STD MSTR WT/STD
Horizontally
FG1100C 10901 Standard Depth Cover Depth Depth 2-1/4” 1 10 0.45#
FG1110C 10902 Deep Cover Cover 3-1/8” 1 10 0.49#

14 Configurations, One Cover
Single Gang Vertical or Horizontal.
Includes 3 Patented Inserts
4 Rounds; Toggle; Duplex;
GFCI 1-3/8”; 1-5/8”; 1-3/4”; 2-1/8”

Mounts Vertically or Horizontally
Plug and Outlet Protection for any Single Gang Application.
The standard Depth Cover recommended for 16 gauge or
lighter cord sets for vending machines, holiday lighting,
landscape lighting and portable signs.
Double Gang

CAT. NO. UPC DESCRIPTION DEPTH STD MSTR WT/STD
FG1220C 10911 Standard Depth Cover 2-1/4” 1 10 0.55#

70 Configurations, One Cover Fittings & Stampings
Any Two Gang Application.
Includes 6 Snap Together
Patented Inserts.
Mounts Vertically or Horizontally
Plug and Outlet Protection for any
Two Gang Application.
Fittings & Stampings
The standard Depth Cover recommended
for 16 gauge or lighter cord sets for vending machines,
holiday lighting, landscape lighting and portable signs.

Tech Talk

Plastic In-Use Covers
Flexible and easy to install, “While in Use” Covers are ideal for single-
gang, double-gang, horizontal and vertical outdoor applications in a
wet location.
• Ensure compliance with Article 406.8(B)(1) of the National Electronic Code
which states that 15 to 20 Ampere, 125 and 250 volt receptacles installed in a
wet location shall have an enclosure that is weatherproof whether or not the
attachment plug cap is inserted.
• Meets UL and CSA Cold Impact Testing at -60˚F (-51˚C)
• Clear UV Stabilized Polycarbonate Covers for long life in high abuse outdoor
installations
• All Covers are shipped with gasket, mounting screws, base and cover assembly
and two inserts
• Patented inserts for all wiring devices

C28
