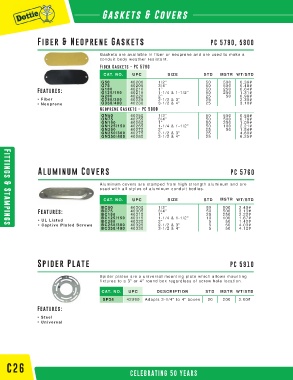

Page 88 - CAT31D

Gaskets & Covers

Fiber & Neoprene Gaskets PC 5790, 5800

Gaskets are available in fiber or neoprene and are used to make a
conduit body weather resistant.
Fiber Gaskets - PC 5790
CAT. NO. UPC SIZE STD MSTR WT/STD
G50 40200 1/2” 50 500 0.36#
G75 40205 3/4” 50 500 0.48#
Features: G100 40210 1” 50 250 0.64#
G125/150
1.31#
1-1/4 & 1-1/2”
50
250
40215
G200 40220 2” 25 50 0.98#
• Fiber G250/300 40225 2-1/2 & 3” 25 2.30#
• Neoprene G350/400 40230 3-1/2 & 4” 25 3.10#
Neoprene Gaskets - PC 5800
GN50 40250 1/2” 50 500 0.58#
GN75 40255 3/4” 50 500 0.78#
GN100 40260 1” 50 250 1.00#
GN125/150 40265 1-1/4 & 1-1/2” 50 100 2.21#
GN200 40270 2” 25 50 1.84#
GN250/300 40275 2-1/2 & 3” 25 4.60#
GN350/400 40280 3-1/2 & 4” 25 6.25#

Aluminum Covers PC 5760

Aluminum covers are stamped from high strength aluminum and are
used with all styles of aluminum conduit bodies. Fittings & Stampings
CAT. NO. UPC SIZE STD MSTR WT/STD
BC50 40300 1/2” 50 500 2.40#
Features: BC75 40305 3/4” 50 500 3.13#
25
2.22#
40310
1”
250
BC100
• UL Listed BC125/150 40315 1-1/4 & 1-1/2” 10 5 100 1.67#
1.42#
40320
BC200
50
2”
• Captive Plated Screws BC250/300 40325 2-1/2 & 3” 5 50 4.03#
Fittings & Stampings
BC350/400 40330 3-1/2 & 4” 5 50 4.12#
Spider Plate PC 5910
Spider plates are a universal mounting plate which allows mounting
fixtures to a 3” or 4” round box regardless of screw hole location.
CAT. NO. UPC DESCRIPTION STD MSTR WT/STD
SP34 42090 Adapts 3-1/4” to 4” boxes 20 200 3.00#
Features:

• Steel
• Universal

C26
