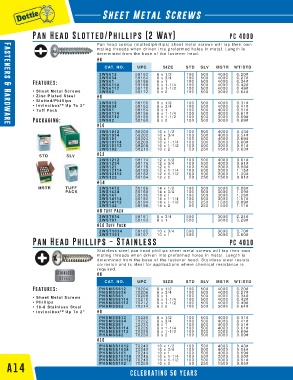

P. 20
Sheet Metal Screws
Pan Head Slotted/Phillips (2 Way) PC 4000
Pan head combo (slotted/phillips) sheet metal screws will tap their own
mating threads when driven into preformed holes in metal. Length is
determined from the base of the fastenerhead.
#6
CAT. NO. UPC SIZE STD SLV MSTR WT/STD
:6 58162 6 x 1/2 100 500 4000 0.20#
:6 58164 6 x 3/4 100 500 4000 0.27#
Features: :6 58166 6 x 1 100 500 4000 0.34#
6 x 1-1/4
58168
:6
4000
0.42#
100
500
:6 58170 6 x 1-1/2 100 500 4000 0.49#
6KHHW 0HWDO 6FUHZV :6 58172 6 x 2 100 500 3000 0.64#
=LQF 3ODWHG 6WHHO #8
6ORWWHG 3KLOOLSV :6 58150 8 x 1/2 100 500 4000 0.31#
,QYLQFLER[ TM 8S 7R ´ :6 58152 8 x 3/4 100 500 4000 0.41#
7XII 3DFN :6 58154 8 x 1 100 500 4000 0.51#
:6 58156 8 x 1-1/4 100 500 4000 0.61#
:6 58158 8 x 1-1/2 100 500 3000 0.69#
Packaging: :6 58160 8 x 2 100 500 3000 0.89#
#10
Fasteners & Hardware
:6 58200 10 x 1/2 100 500 4000 0.43#
:6 58202 10 x 3/4 100 500 4000 0.54#
:6 58204 10 x 1 100 500 4000 0.69#
:6 58206 10 x 1-1/4 100 500 3000 0.80#
:6 58208 10 x 1-1/2 100 500 3000 0.91#
:6 58210 10 x 2 50 250 1500 0.63#
#12
STD SLV
:6 58174 12 x 1/2 100 500 4000 0.61#
:6 58176 12 x 3/4 100 500 4000 0.81#
:6 58178 12 x 1 100 500 3000 0.96#
:6 58180 12 x 1-1/4 100 500 3000 1.15#
:6 58182 12 x 1-1/2 100 500 3000 1.30#
:6 58184 12 x 2 50 250 1500 0.81#
#14
MSTR 78)) :6 58186 14 x 1/2 100 500 3000 0.86#
PACK :6 58188 14 x 3/4 100 500 3000 1.09#
:6 58190 14 x 1 100 500 3000 1.28#
:6 58192 14 x 1-1/4 100 500 3000 1.57#
:6 58194 14 x 1-1/2 50 250 1500 0.89#
:6 58196 14 x 2 50 250 1500 1.11#
#8 Tuff Pack
:67 58161 8 x 3/4 500 3000 2.24#
:67 58163 8 x 1 500 3000 3.29#
#10 Tuff Pack
:67 58165 10 x 3/4 500 3000 3.70#
:67 58167 10 x 1 500 3000 3.60#
Pan Head Phillips - Stainless PC 4010
Stainless steel pan head phillips sheet metal screws will tap their own
mating threads when driven into preformed holes in metal. Length is
determined fromthe base ofthe fastener head. Stainless steel resists
corrosion and is ideal for applications where chemical resistance is
required.
#6
CAT. NO. UPC SIZE STD SLV MSTR WT/STD
Features: 3+6066 70204 6 x 1/2 100 500 4000 0.20#
3+6066 70206 6 x 3/4 100 500 4000 0.27#
6KHHW 0HWDO 6FUHZV 3+6066 70208 6 x 1 100 500 4000 0.34#
0.42#
6 x 1-1/4
100
500
3+6066
70210
4000
3KLOOLSV 3+6066 70212 6 x 1-1/2 100 500 4000 0.49#
6WDLQOHVV 6WHHO 3+6066 70214 6 x 2 100 500 3000 0.64#
,QYLQFLER[ TM 8S 7R ´ #8
3+6066 70220 8 x 1/2 100 500 4000 0.31#
3+6066 70222 8 x 3/4 100 500 4000 0.41#
3+6066 70224 8 x 1 100 500 4000 0.51#
3+6066 70226 8 x 1-1/4 100 500 4000 0.61#
3+6066 70228 8 x 1-1/2 100 500 3000 0.69#
3+6066 70230 8 x 2 100 500 3000 0.89#
#10
3+6066 70240 10 x 1/2 100 500 4000 0.43#
3+6066 70242 10 x 3/4 100 500 4000 0.54#
3+6066 70244 10 x 1 100 500 4000 0.69#
3+6066 70246 10 x 1-1/4 100 500 3000 0.80#
3+6066 70248 10 x 1-1/2 100 500 3000 0.91#
70250
0.85#
1500
3+6066
50
10 x 2
250
A14
