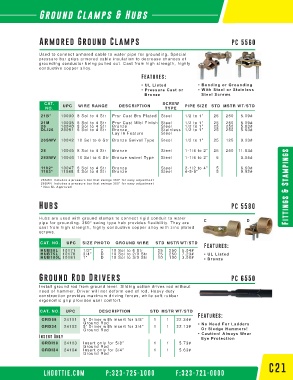

Page 81 - Catalog 31

Ground Clamps & Hubs

Armored Ground Clamps PC 5560

Used to connect armored cable to water pipe for grounding. Special
pressure bar grips armored cable insulation to decrease chances of
grounding conductor being pulled out. Cast from high strength, highly
conductive copper alloy.
Features:

‡ 8/ /LVWHG ‡ %RQGLQJ RU *URXQGLQJ
‡ 3UHVVXUH &DVW RU ‡ :LWK 6WHHO RU 6WDLQOHVV
%URQ]H 6WHHO 6FUHZV
CAT. UPC WIRE RANGE DESCRIPTION SCREW PIPE SIZE STD MSTR WT/STD
NO. TYPE
% 10030 8 Sol to 4 Str Prsr Cast Brs Plated Steel 1/2 to 1” 25 250 5.09#
0 10035 8 Sol to 4 Str Prsr Cast Mlbl Finish Steel 1/2 to 1” 25 250 5.09#
10040 8 Sol to 4 Str Bronze Steel 1/2 to 1” 25 250 5.83#
'/, 28091 8 Sol to 4 Str Bronze Stainless 1/2 to 1” 25 250 5.63#
Lay in Feature Steel
6:9 10042 10 Sol to 6 Str Bronze Swivel Type Steel 1/2 to 1” 25 125 9.33#

10045 8 Sol to 4 Str Bronze Steel 1-1/4 to 2” 25 250 11.63#
6:9 10046 10 Sol to 6 Str Bronze swivel Type Steel 1-1/4 to 2” 5 3.05#

10047 8 Sol to 4 Str Bronze Steel 2-1/2 to 4” 5 6.60#
11048 8 Sol to 4 Str Bronze Steel 4-5-6” 5 9.92#
6:9 ,QFOXGHV D SUHVVXUH EDU WKDW VZLQJV ƒ IRU HDV\ DGMXVWPHQW
6:9 ,QFOXGHV D SUHVVXUH EDU WKDW VZLQJV ƒ IRU HDV\ DGMXVWPHQW
* Non UL Approved Fittings & Stampings

Hubs PC 5580

Hubs are used with ground clamps to connect rigid conduit to water C D
SLSH IRU JURXQGLQJ ƒ VZLQJ W\SH KXE SURYLGHV IOH[LELOLW\ 7KH\ DUH
cast from high strength, highly conductive copper alloy with zinc plated
screws.

CAT. NO. UPC SIZE 3+272 GROUND WIRE STD MSTR WT/STD
Features:
+8% / 10171 1/2” C 10 Sol to 6 Str 25 250 5.04#
+8% / 10176 3/4” D 10 Sol to 2/0 Str 25 250 7.23# ‡ 8/ /LVWHG
+8% / 10181 1” D 10 Sol to 3/0 Str 10 100 3.00# ‡ %URQ]H

Ground Rod Drivers PC 6550

Install ground rod from ground level. Sliding action drives rod without
need of hammer. Driver will not deform end of rod. Heavy duty
construction provides maximum driving forces, while soft rubber
ergonomic grip provides user comfort.
CAT. NO. UPC DESCRIPTION STD MSTR WT/STD
Features:
*5' 24101 5’ Driver with insert for 5/8” 1 1 22.34#
Ground Rod ‡ 1R 1HHG )RU /DGGHUV
GRD34 24102 5’ Driver with insert for 3/4” 1 1 22.13#
Ground Rod 2U 6OHGJH +DPPHUV
‡ &DXWLRQ $OZD\V :HDU
Insert Only (\H 3URWHFWLRQ
*5', 24103 Insert only for 5/8” 1 1 5.73#
Ground Rod
GRDI34 24104 Insert only for 3/4” 1 1 5.63#
Ground Rod
C21
LHDOTTIE.COM P:323-725-1000 F:323-721-0000
