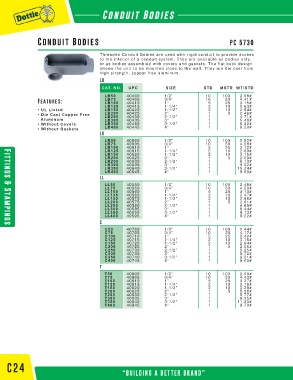

Page 84 - Catalog 31

Conduit Bodies

Conduit Bodies PC 5730

Threaded Conduit Bodies are used with rigid conduit to provide access
to the interior of a conduit system. They are available as bodies only,
or as bodies assembled with covers and gaskets. The flat back design
allows the unit to be mounted close to the wall. They are die cast from
high strength, copper free aluminum.
LB
&$7 12 83& SIZE 67' 0675 :7 67'
/% 40400 1/2” 10 100 2.98#
Features: /% 40405 3/4” 10 5 50 4.41#
25
3.15#
1”
40410
/%
/% 40415 1-1/4” 2 10 2.63#
‡ 8/ /LVWHG /% 40420 1-1/2” 2 10 2.94#
‡ 'LH &DVW &RSSHU )UHH /% 40425 2” 1 1 5 2.46#
2-1/2”
/%
40430
4.71#
$OXPLQXP /% 40435 3” 1 5.40#
‡ :LWKRXW &RYHUV /% 40440 3-1/2” 1 8.32#
‡ :LWKRXW *DVNHWV /% 40445 4” 1 8.50#
LR
/5 40600 1/2” 10 100 2.52#
/5 40605 3/4” 10 50 4.58#
/5 40610 1” 5 25 3.12#
/5 40615 1-1/4” 2 10 2.89#
/5 40620 1-1/2” 2 10 3.15#
/5 40625 2” 1 5 2.59#
/5 40630 2-1/2” 1 6.13#
/5 40635 3” 1 9.02#
/5 40640 3-1/2” 1 10.24#
/5 40645 4” 1 9.60#
LL
// 40550 1/2” 10 100 2.48#
// 40555 3/4” 10 50 4.50#
// 40560 1” 5 25 3.13#
// 40565 1-1/4” 2 10 2.47#
// 40570 1-1/2” 2 10 2.98#
// 40575 2” 1 5 2.61#
// 40580 2-1/2” 1 4.69#
// 40585 3” 1 6.44#
// 40590 3-1/2” 1 9.13#
// 40595 4” 1 9.22#
C
Fittings & Stampings
& 40700 1/2” 10 100 2.44#
& 40705 3/4” 10 50 4.17#
& 40710 1” 5 25 2.42#
& 40715 1-1/4” 2 10 3.16#
& 40720 1-1/2” 2 10 2.84#
& 40725 2” 1 5 2.55#
& 40730 2-1/2” 1 5.25#
& 40735 3” 1 5.72#
& 40740 3-1/2” 1 9.51#
& 40745 4” 1 9.00#
T
7 40800 1/2” 10 100 2.99#
7 40805 3/4” 10 50 4.43#
7 40810 1” 5 25 3.27#
7 40815 1-1/4” 2 10 3.76#
7 40820 1-1/2” 2 10 3.29#
7 40825 2” 1 5 5.38#
7 40830 2-1/2” 1 5.77#
7 40835 3” 1 6.35#
7 40840 3-1/2” 1 11.30#
7 40845 4” 1 9.70#

C24
