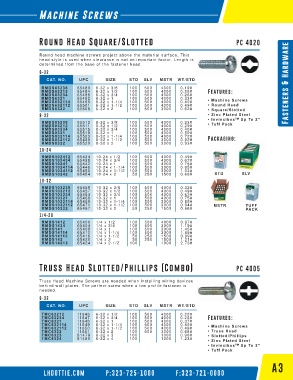

Page 9 - Catalog 31

Machine Screws

Round Head Square/Slotted PC 4020

Round head machine screws project above the material surface. This
head style is used when clearance is not an important factor. Length is
determined from the base of the fastener head.
6-32
CAT. NO. UPC SIZE STD SLV MSTR WT/STD Fasteners & Hardware
50'6 65480 6-32 x 3/8 100 500 4000 0.19#
50'6 65484 6-32 x 1/2 100 500 4000 0.26# Features:
50'6 65488 6-32 x 3/4 100 500 4000 0.26#
50'6 65492 6-32 x 1 100 500 4000 0.33# ‡ 0DFKLQH 6FUHZV
50'6 65496 6-32 x 1-1/4 100 500 4000 0.40#
50'6 65501 6-32 x 1-1/2 100 500 4000 0.49# ‡ 5RXQG +HDG
50'6 65505 6-32 x 2 100 500 3000 0.62# ‡ 6TXDUH 6ORWWHG
8-32 ‡ =LQF 3ODWHG 6WHHO
‡ ,QYLQFLER[ TM 8S 7R ´
50'6 65512 8-32 x 3/8 100 500 4000 0.23# ‡ 7XII 3DFN
50'6 65511 8-32 x 1/2 100 500 4000 0.29#
50'6 65515 8-32 x 3/4 100 500 4000 0.40#
50'6 65519 8-32 x 1 100 500 4000 0.50#
50'6 65523 8-32 x 1-1/4 100 500 4000 0.72#
50'6 65430 8-32 x 1-1/2 100 500 3000 0.82# Packaging:
50'6 65520 8-32 x 2 100 500 3000 0.93#
10-24
50'6 65434 10-24 x 1/2 100 500 4000 0.49#
50'6 65438 10-24 x 3/4 100 500 4000 0.62#
50'6 65442 10-24 x 1 100 500 4000 0.75#
50'6 65446 10-24 x 1-1/4 100 500 3000 0.95#
50'6 65450 10-24 x 1-1/2 100 500 3000 1.03#
50'6 65454 10-24 x 2 50 250 1500 0.66# STD SLV
10-32
50'6 65458 10-32 x 3/8 100 500 4000 0.32#
50'6 65457 10-32 x 1/2 100 500 4000 0.49#
50'6 65464 10-32 x 3/4 100 500 4000 0.62#
50'6 65468 10-32 x 1 100 500 4000 0.75#
50'6 65469 10-32 x 1-1/4 100 500 3000 0.85#
50'6 65471 10-32 x 1-1/2 100 500 3000 0.94# MSTR 78))
50'6 65467 10-32 x 2 50 250 1500 0.66# PACK
1/4-20
50'6 65400 1/4 x 1/2 100 500 4000 0.97#
50'6 65404 1/4 x 3/4 100 500 3000 1.19#
50'6 65408 1/4 x 1 100 500 3000 1.45#
50'6 65412 1/4 x 1-1/4 100 500 3000 1.69#
50'6 65416 1/4 x 1-1/2 50 250 1500 0.99#
50'6 65420 1/4 x 2 50 250 1500 1.21#
50'6 65424 1/4 x 2-1/2 100 1000 2.73#

Truss Head Slotted/Phillips (Combo) PC 4005

Truss Head Machine Screws are needed when installing wiring devices
behind wall plates. The perfect screw when a low profile fastener is
needed.
6-32
CAT. NO. UPC SIZE STD SLV MSTR WT/STD
70& 11646 6-32 x 1/2 100 500 4000 0.20#
70& 11647 6-32 x 3/4 100 500 4000 0.26# Features:
70& 11648 6-32 x 1 100 500 4000 0.37#
70& 11649 6-32 x 1-1/4 100 500 4000 0.40# ‡ 0DFKLQH 6FUHZV
70& 11650 6-32 x 1-1/2 100 500 4000 0.49#
70& 11651 6-32 x 2 100 500 3000 0.68# ‡ 7UXVV +HDG
70& 81479 6-32 x 3 100 1000 0.96# ‡ 6ORWWHG 3KLOOLSV
70& 81480 6-32 x 4 100 1000 1.23#
‡ =LQF 3ODWHG 6WHHO
‡ ,QYLQFLER[ TM 8S 7R ´
‡ 7XII 3DFN

A3
LHDOTTIE.COM P:323-725-1000 F:323-721-0000
