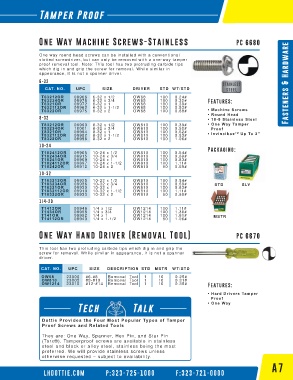

Page 13 - Catalog 31
P. 13
Tamper Proof
One Way Machine Screws-Stainless PC 6680
One way round head screws can be installed with a conventional
slotted screwdriver, but can only be removed with a one-way tamper
proof removal tool. Note: This tool has two protruding carbide tips
which dig in and grip the screw for removal. While similar in
appearance, it is not a spanner driver.
6-32 Fasteners & Hardware
CAT. NO. UPC SIZE DRIVER STD WT/STD
7 25 09968 6-32 x 1/2 OW68 100 0.24#
7 25 09978 6-32 x 3/4 OW68 100 0.32# Features:
7 25 09972 6-32 x 1 OW68 100 0.39#
7 25 09962 6-32 x 1-1/2 OW68 100 0.53#
7 25 09975 6-32 x 2 OW68 100 0.68# 0DFKLQH 6FUHZV
5RXQG +HDG
8-32 6WDLQOHVV 6WHHO
7 25 09990 8-32 x 1/2 OW810 100 0.39# 2QH :D\ 7DPSHU
7 25 10001 8-32 x 3/4 OW810 100 0.50# 3URRI
7 25 09994 8-32 x 1 OW810 100 0.62# TM
7 25 09982 8-32 x 1-1/2 OW810 100 0.83# ,QYLQFLER[ 8S 7R ´
7 25 09998 8-32 x 2 OW810 100 1.06#
10-24
Packaging:
7 25 09905 10-24 x 1/2 OW810 100 0.54#
7 25 09915 10-24 x 3/4 OW810 100 0.69#
7 25 09909 10-24 x 1 OW810 100 0.83#
7 25 09897 10-24 x 1-1/2 OW810 100 1.11#
7 25 09912 10-24 x 2 OW810 50 0.69#
10-32
7 25 09925 10-32 x 1/2 OW810 100 0.54#
7 25 09936 10-32 x 3/4 OW810 100 0.69# STD SLV
7 25 09930 10-32 x 1 OW810 100 0.83#
7 25 09919 10-32 x 1-1/2 OW810 100 1.11#
7 25 09933 10-32 x 2 OW810 50 0.69#
1/4-20
7 25 09948 1/4 x 1/2 OW1214 100 1.11#
7 25 09958 1/4 x 3/4 OW1214 100 1.36#
7 25 09952 1/4 x 1 OW1214 100 1.61# MSTR
7 25 09940 1/4 x 1-1/2 OW1214 50 1.06#
One Way Hand Driver (Removal Tool) PC 6670
This tool has two protruding carbide tips which dig in and grip the
screwfor removal. While similar in appearance, it is not a spanner
driver.
CAT. NO. UPC SIZE DESCRIPTION STD MSTR WT/STD
2: 23000 #6-#8 Removal Tool 1 10 0.25#
2: 23005 #8-#10 Removal Tool 1 10 0.31#
2: 23010 #12-#14 Removal Tool 1 10 0.35# Features:
+DUG 'ULYHUV 7DPSHU
3URRI
Tech Talk 2QH :D\
'RWWLH 3URYLGHV WKH )RXU 0RVW 3RSXODU 7\SHV RI 7DPSHU
3URRI 6FUHZV DQG 5HODWHG 7RROV
They are: One Way, Spanner, Hex Pin, and Star Pin
(Torx®). Tamperproof screws are available in stainless
steel and black or alloy steel, stainless being the most
preferred. We will provide stainless screws unless
otherwise requested – subject to availability.
A7
LHDOTTIE.COM P:323-725-1000 F:323-721-0000
