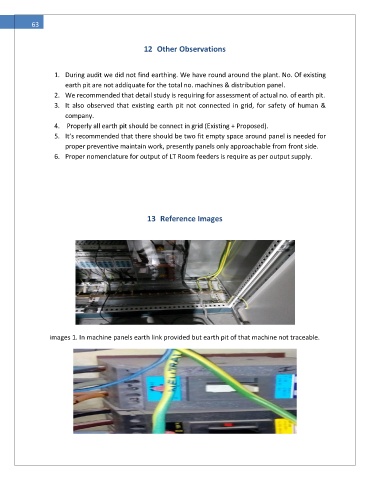

63

12 Other Observations

1. During audit we did not find earthing. We have round around the plant. No. Of existing
earth pit are not addiquate for the total no. machines & distribution panel.
2. We recommended that detail study is requiring for assessment of actual no. of earth pit.
3. It also observed that existing earth pit not connected in grid, for safety of human &
company.
4. Properly all earth pit should be connect in grid (Existing + Proposed).
5. It’s recommended that there should be two fit empty space around panel is needed for

proper preventive maintain work, presently panels only approachable from front side.
6. Proper nomenclature for output of LT Room feeders is require as per output supply.

13 Reference Images

images 1. In machine panels earth link provided but earth pit of that machine not traceable.
