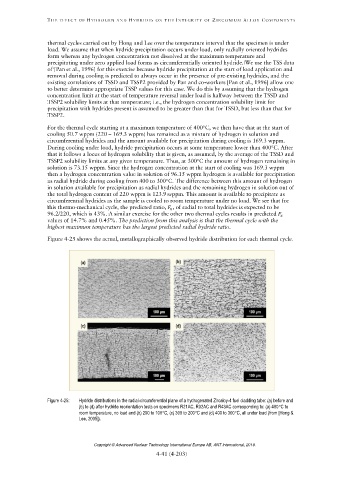

Figure 4-25: Hydride distributions in the radial-circumferential plane of a hydrogenated Zircaloy-4 fuel cladding tube: (a) before and
(b) to (d) after hydride reorientation tests on specimens R21AC, R32AC and R43AC corresponding to: (a) 400C to
room temperature, no load and (b) 200 to 100C, (c) 300 to 200C and (d) 400 to 300C, all under load (from [Hong &
Lee, 2005]).
