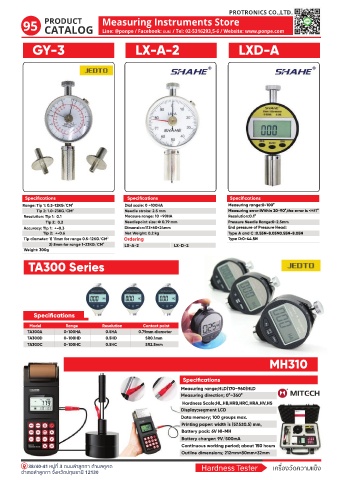

Page 104 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
95 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

GY-3 LX-A-2 LXD-A

Specifications Specifications Specifications
Specifications
Range: Tip 1: 0.5-12KG/CM² Dial scale: 0 ~100HA Measuring range:0-100°
Tip 2: 1.0-23KG/CM² Needle stroke: 2.5 mm Measuring error:Within 20-90°,the error is <=±1°
Resolution: Tip 1: 0.1 Measure range: 10 ~90HA Resolution:0.1°
Tip 2: 0.2 Needlepoint size: 0.79 mm Pressure Needle Range:0-2.5mm
Accuracy: Tip 1: +-0.3 Dimension:113×60×24mm End pressure of Pressure Head:
Tip 2: +-0.6 Net Weight: 0.2 kg Type A and C :0.55N-8.05N0.55N-8.05N
Tip diameter: 1) 11mm for range 0.5-12KG/CM² Ordering Type D:0-44.5N
2) 8mm for range 1-23KG/CM² LX-A-2 LX-D-2
Weight: 300g

TA300 Series

Specifications

Model Range Resolution Contact point
TA300A 0-100HA 0.5HA 0.79mm diameter
TA300D 0-100HD 0.5HD SR0.1mm
TA300C 0-100HC 0.5HC SR2.5mm

MH310

Specifications
Measuring range;HLD(170~960)HLD
Measuring direction; 0°~360°
Hardness Scale;HL,HB,HRB,HRC,HRA,HV,HS
Display;segment LCD
Data memory; 100 groups max.
Printing paper: width is (57.5±0.5) mm,
Battery pack: 6V NI-MH
Battery charger: 9V/500mA
Continuous working period; about 150 hours
Outline dimensions; 212mm×80mm×32mm

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดความแข็ง
